FASTEN METAL TO WOOD

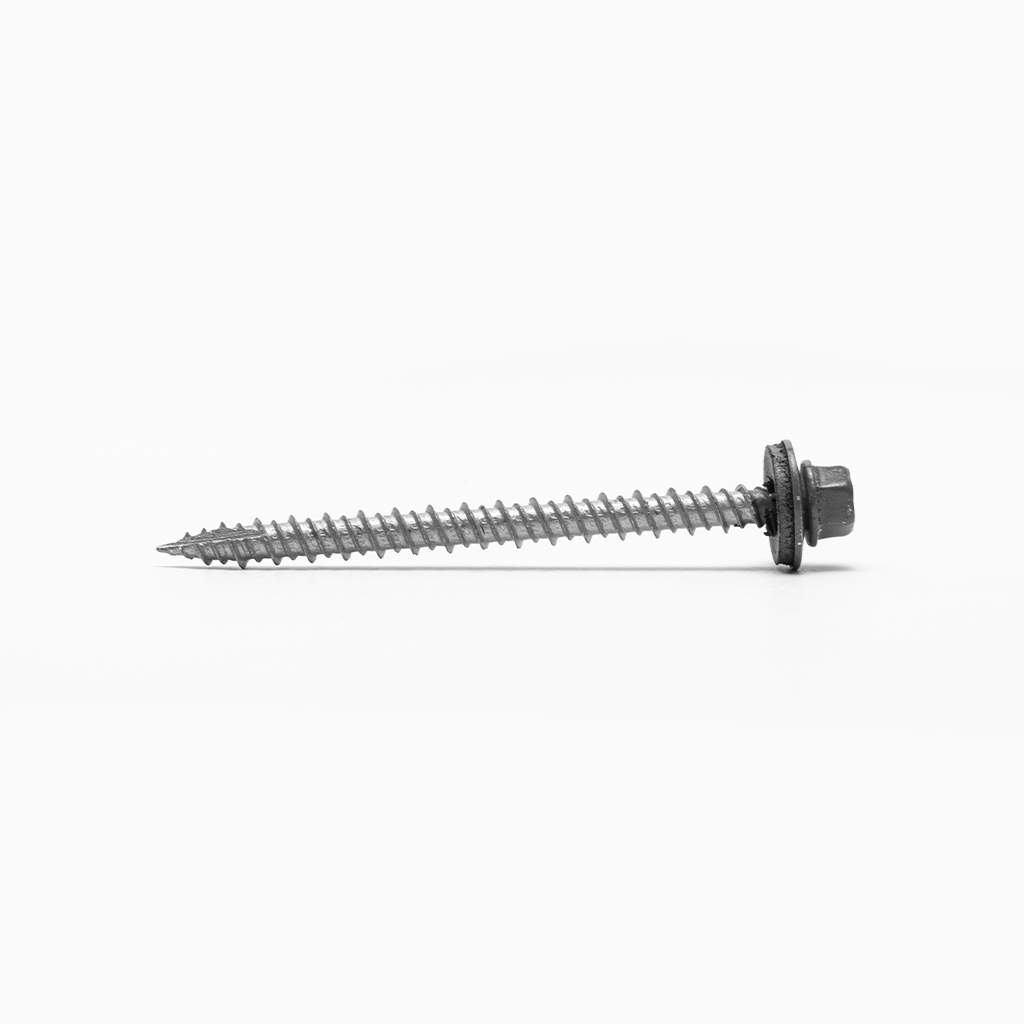

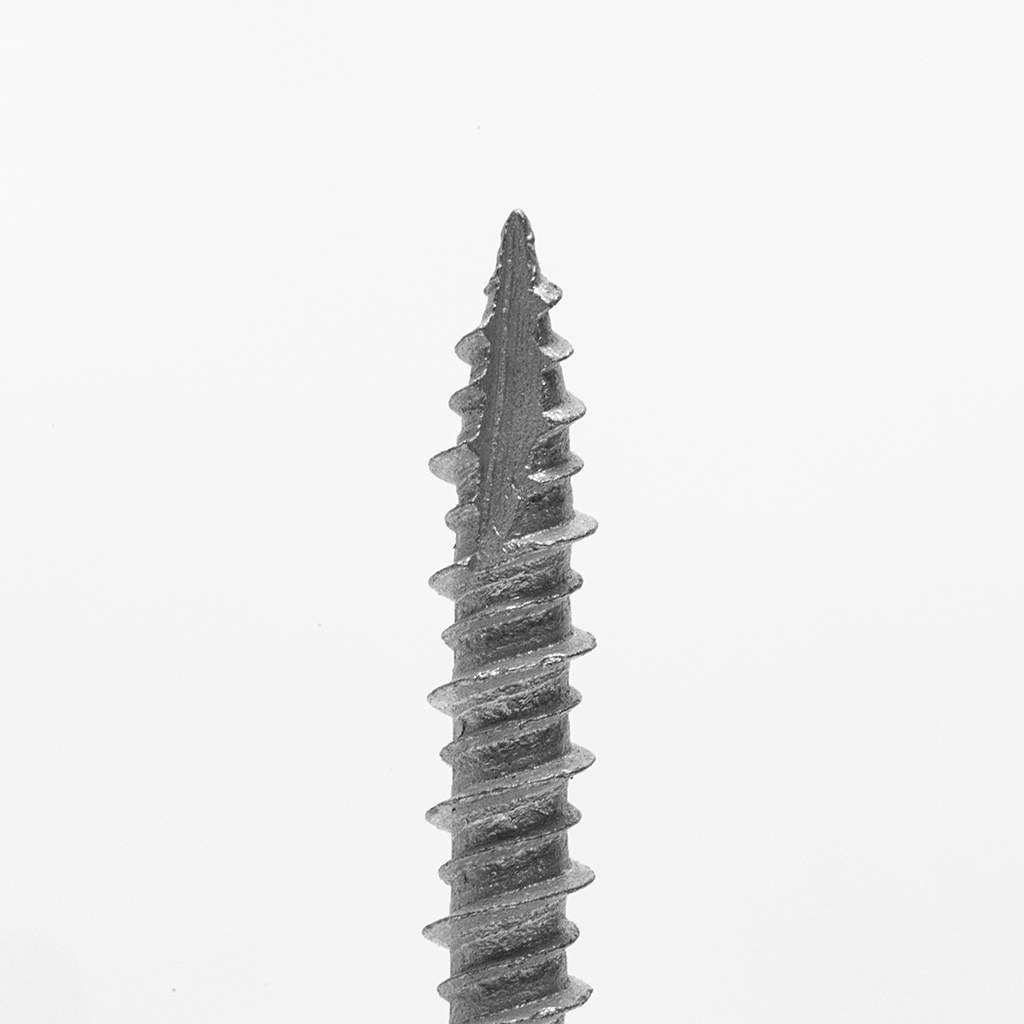

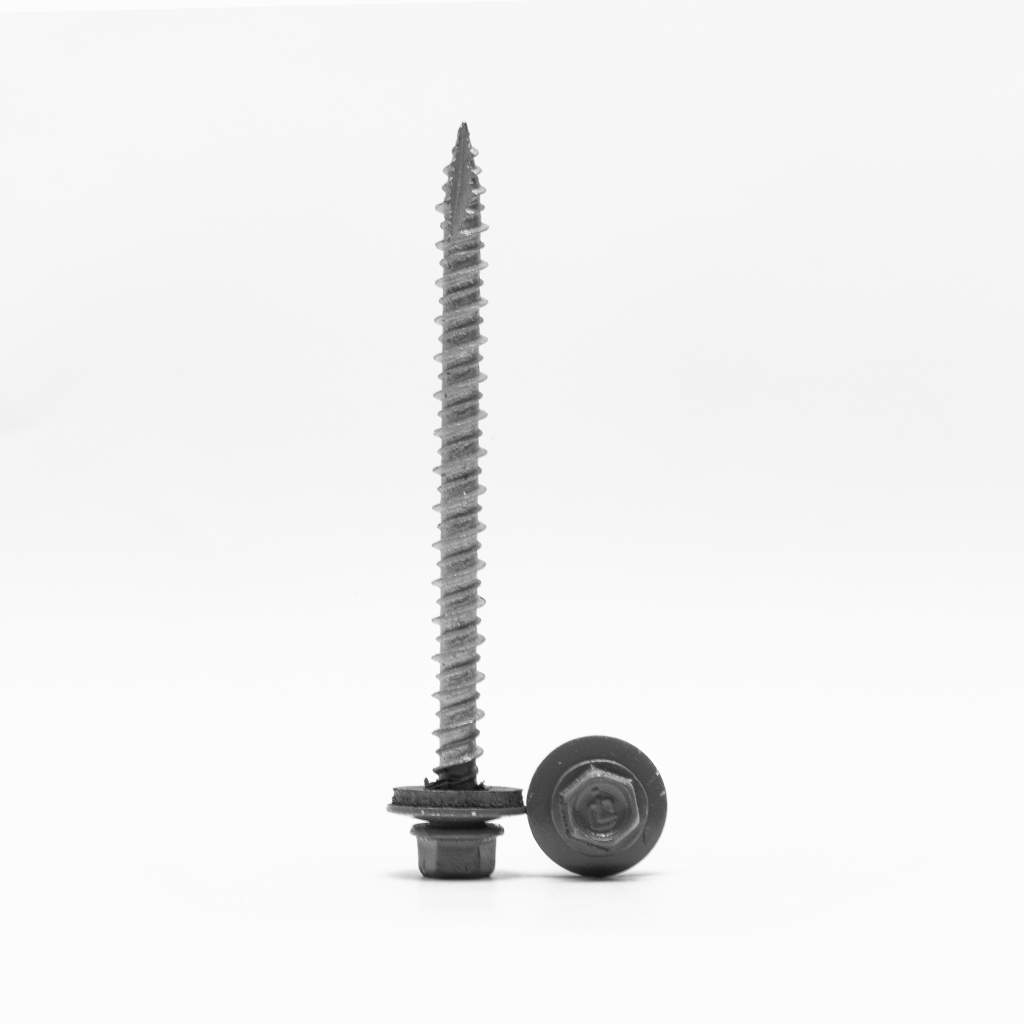

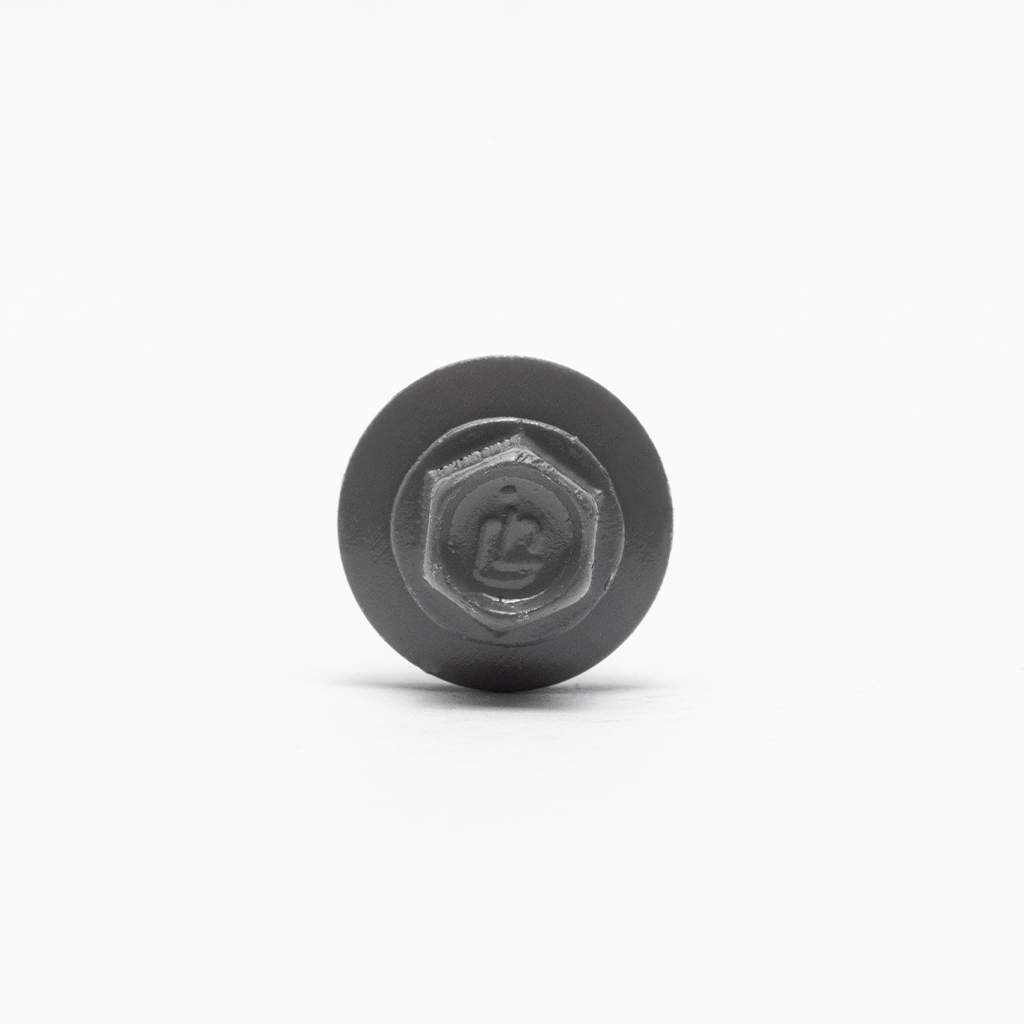

#10 HI-LO
JBC’s Hi-Lo screws are some of the best in the industry. They are sharper, drill better, and the cut point is true. The paint stays on when installing, and builders prefer JBC’s “true” sizing and Hi-Lo threading for better holding power and easy installation. Choose from 40-plus in-stock colors that can ship immediately or be specifically color matched and still receive timely shipping.
- #10 Hi-Lo screw, type 17 point
- Mechanical galvanized
- Hi-Lo threads
- Galvanized EPDM washer 1/2″ OD
- Fastens metal to wood
| PART # | DESCRIPTION | HEAD STYLE | DRILL PT | PCS/BOX | LBS/BOX |
|---|---|---|---|---|---|
|
123ST |
#12 – 14 X 3/4″ Stitch |
1/4″ Hex |
Sharp Point |
3,000 |
25.9
|
|
101HL |
#10 x 1″ |
1/4″ Hex |
T-17 |
3,000 |
26.6 |
|
10112HL |
#10 x 1-1/2″ |
1/4″ Hex |
T-17 |
2,500 |
27.8
|
|
102HL |
#10 x 2″ |
1/4″ Hex |
T-17 |
2,000 |
26.4
|
|
10212HL |
#10 x 2-1/2″ |
1/4″ Hex |
T-17 |
1500 |
23.7
|
|
103HL |
#10 x 3″ |
1/4″ Hex |
T-17 |
1000 |
18.3
|
|
104HL |
#10 x 4″ |
1/4″ Hex |
T-17 |
500 |
11.8
|
| SUBSTRATE | PENETRATION | PULL-OUT STRENGTH |
|---|---|---|
|
3/4″ Ply |
Full |
530
|
|
1/2″ Ply |
Full |
305
|
|
7/16″ OSB |
Full |
158 |
|
2 x Yellow Pine |
1″ |
986
|
|
2 x Spruce Pine Fir |
1″ |
1,023 |
|
2 x Spruce Pine Fir |
1 – 1/2″ |
1,379
|
| SHEAR | TENSILE | TORSIONAL |
|---|---|---|
|
1,900 |
2,736 |
60
|
| SUBSTRATE | GAUGE | THICKNESS | PULL-OVER STRENGTH |
|---|---|---|---|
|
AZ55 Galvalume |
29 |
.014
|
415
|
|
AZ55 Galvalume |
26 |
.018 |
560
|
|
AZ55 Galvalume |
24 |
.024 |
717
|

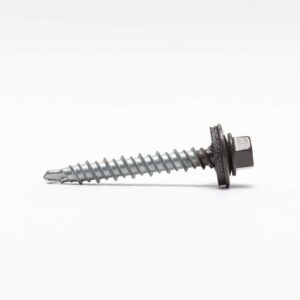

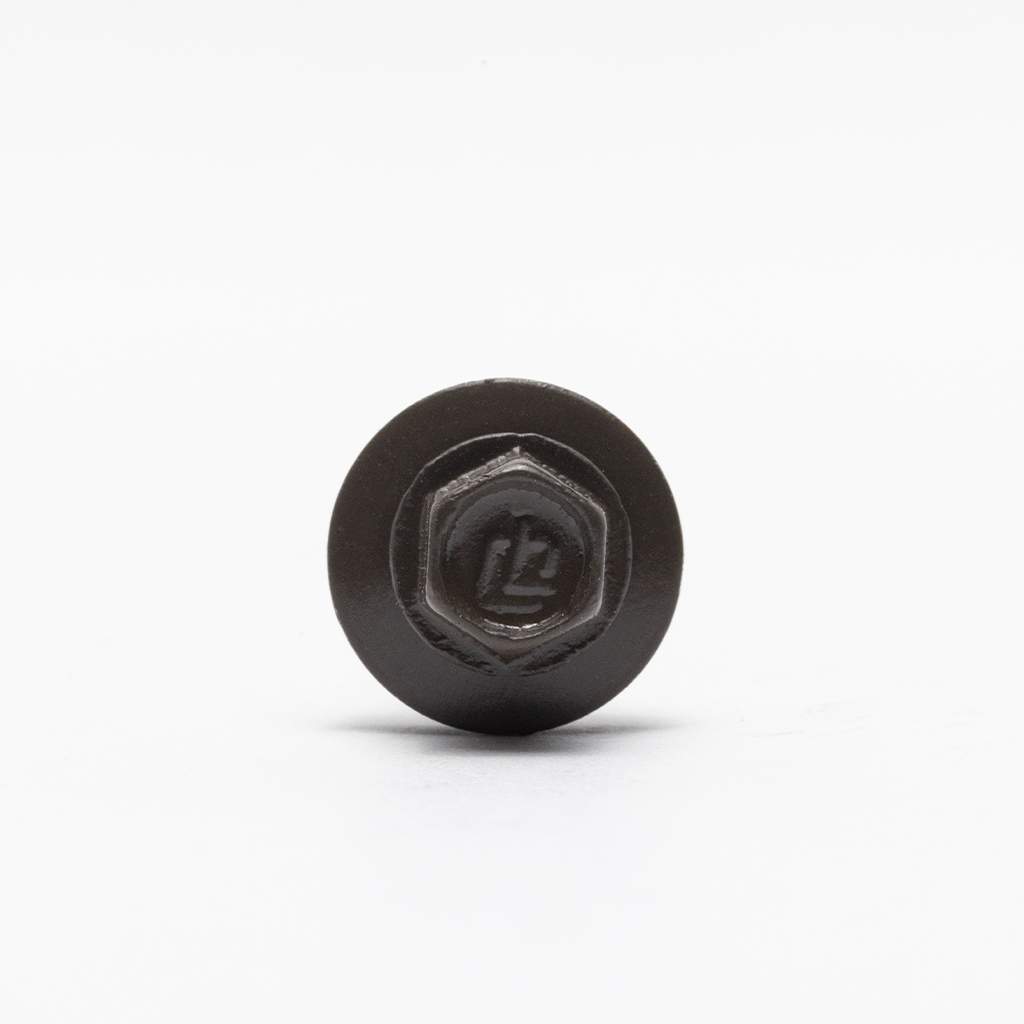

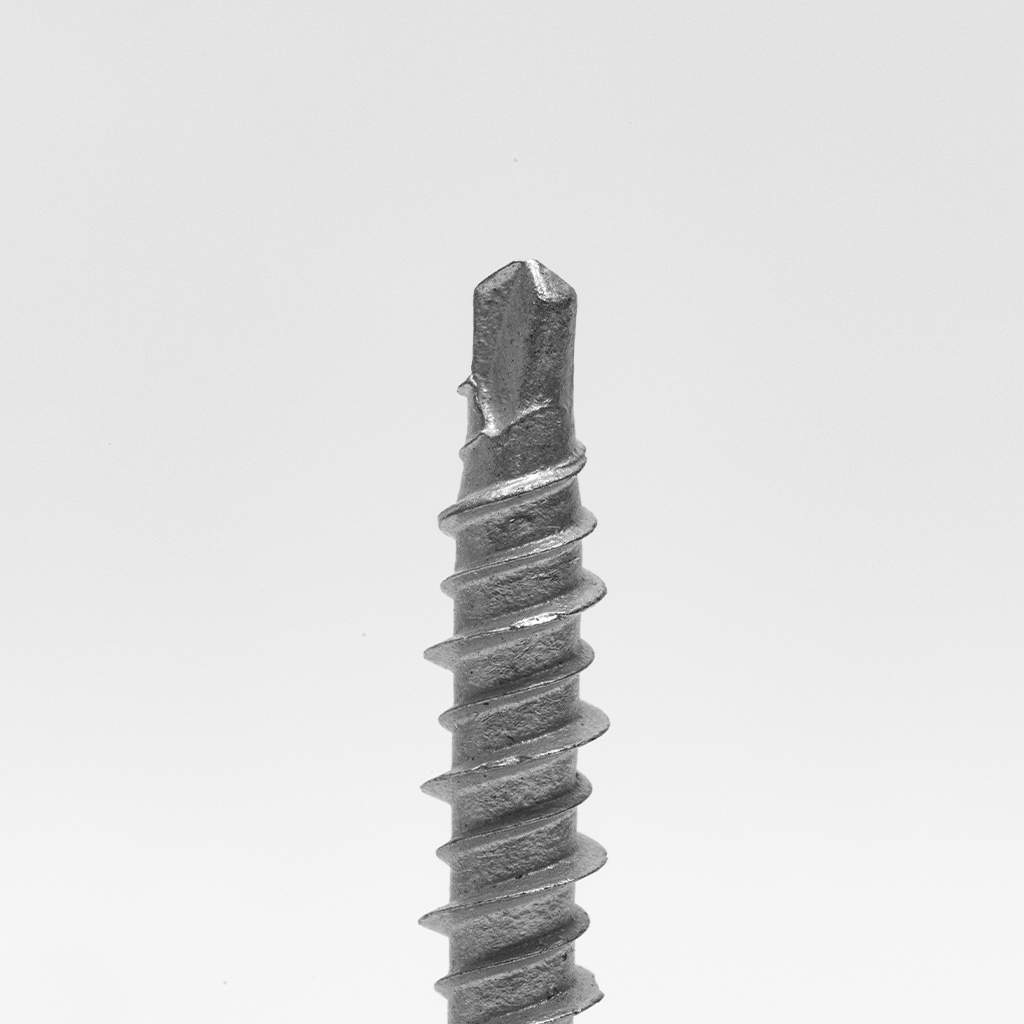

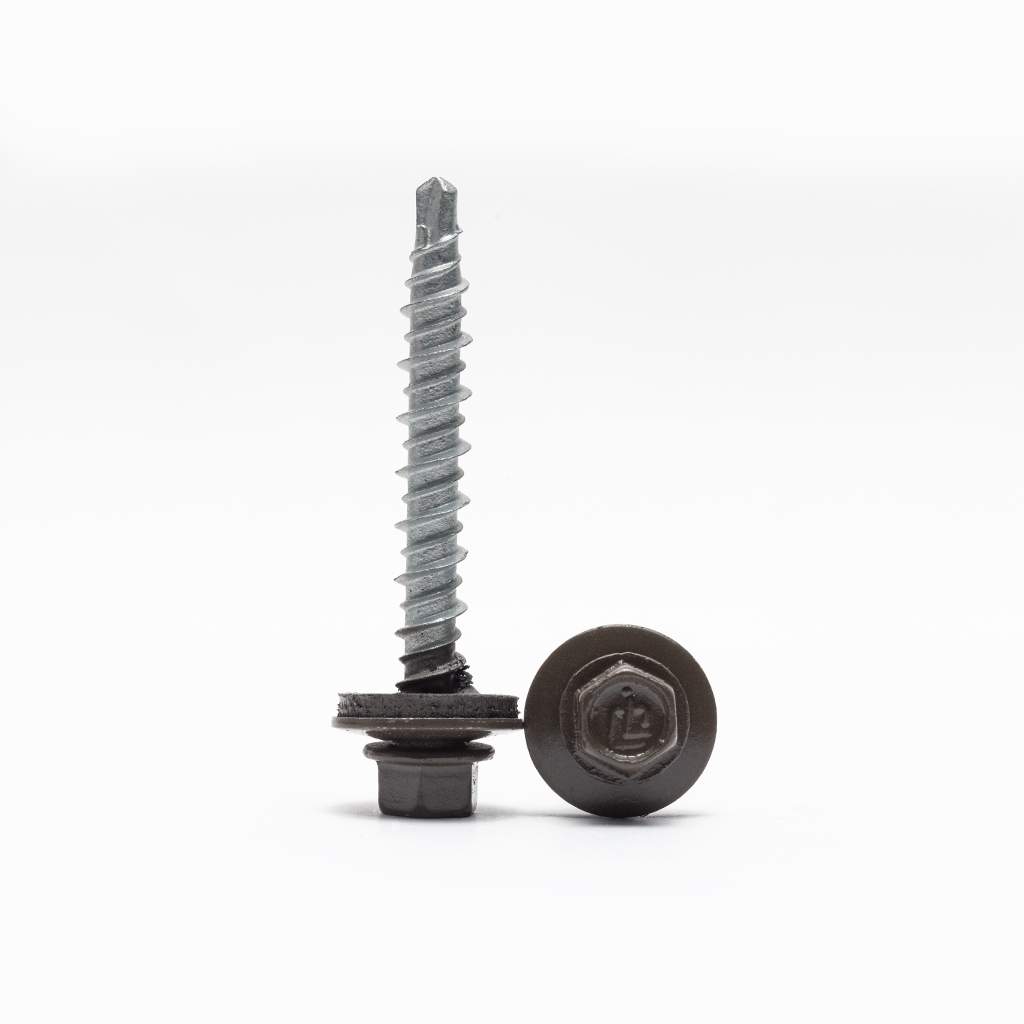

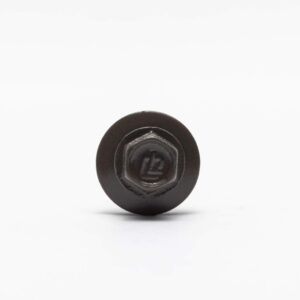

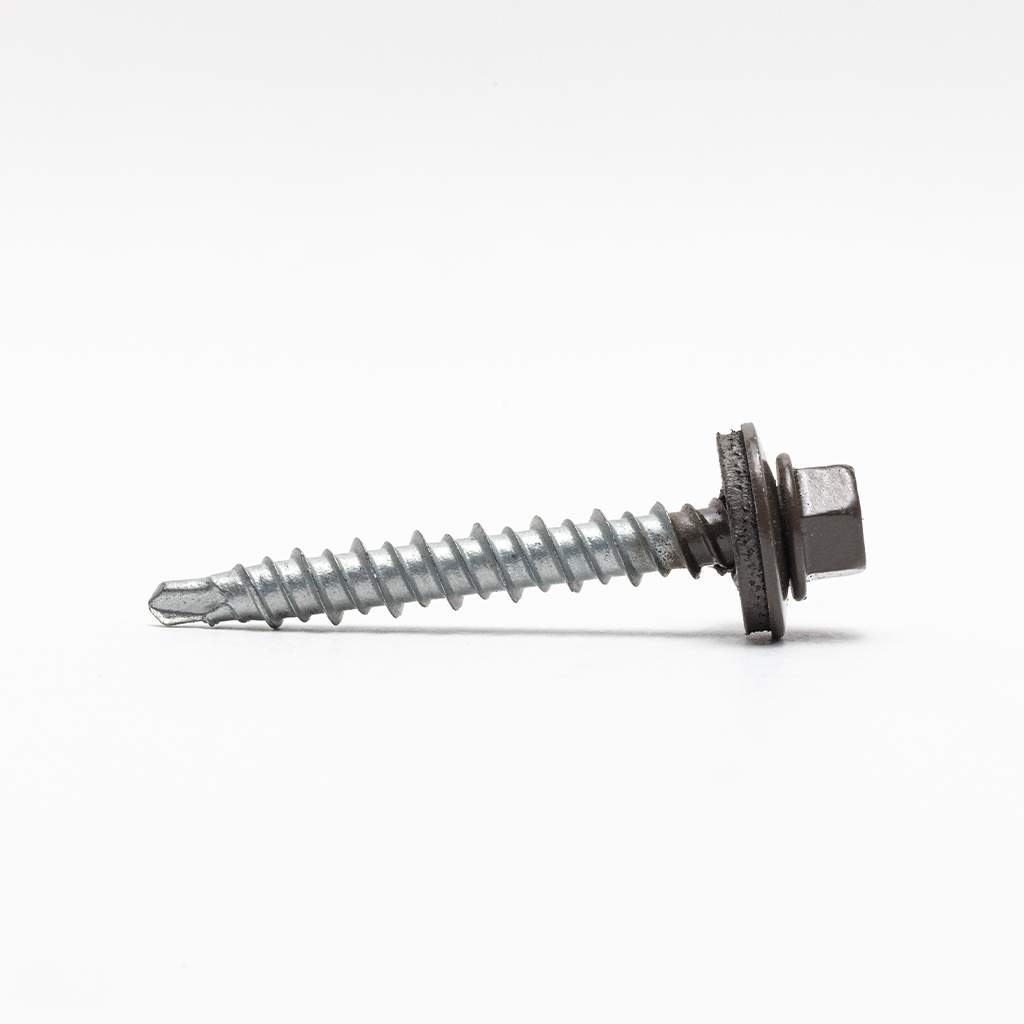

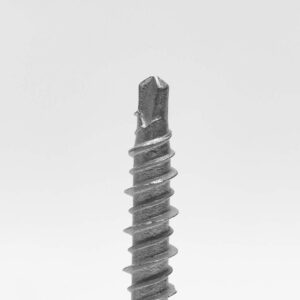

Mini Driller
The Fastgrip™ #10 Hi-Lo MINI-DRILLER™ has all of the specs that make the Fastgrip™ #10 Hi-Lo the go-to fastener, but with the added MINI-DRILLER™ point. The MINI-DRILLER™ makes easy work of driving through metal panels, while the Hi-Lo thread provides superior pull-out strength in metal-to-wood applications.
- Faster start time
- Increased performance when drilling through two layers of metal
- Reduces trapped steel shavings
- Mechanical galvanized
- Hi-Lo threads
- • 1/2″ galvanized EPDM washer
| PART # | DESCRIPTION | HEAD STYLE | DRILL PT | PCS/BOX | LBS/BOX |
|---|---|---|---|---|---|
|
101MD |
#10 x 1″ |
1/4″ Hex |
Reduced Point |
3,000 |
26.8
|
|
10112MD |
#10 x 1-1/2″ |
1/4″ Hex |
Reduced Point |
2,500 |
27.9
|
|
102MD |
#10 x 2″ |
1/4″ Hex |
Reduced Point |
2,000 |
27.3
|
|
10212MD |
#10 x 2-1/2″ |
1/4″ Hex |
Reduced Point |
1,500 |
23.5
|
|
103MD |
#10 x 3″ |
1/4″ Hex |
Reduced Point |
1,000 |
19.0
|
| SUBSTRATE | PENETRATION | PULL-OUT STRENGTH |
|---|---|---|
|
3/4″ Ply |
Full |
525 |
|
1/2″ Ply |
Full |
280
|
|
7/16″ OSB |
Full |
217
|
|
2 x Yellow Pine |
1″ |
850
|
|
2 x Spruce Pine Fir |
1″ |
787
|
|
2 x Spruce Pine Fir |
1 – 1/2″ |
1,285
|
| SHEAR | TENSILE | TORSIONAL |
|---|---|---|
|
1,750 |
2,486 |
80 |
| SUBSTRATE | GAUGE | THICKNESS | PULL-OVER STRENGTH |
|---|---|---|---|
|
AZ55 Galvalume |
29 |
.014
|
398 |
|
AZ55 Galvalume |
26 |
.018 |
667 |
|
AZ55 Galvalume |
24 |
.024 |
767 |
#14
Ensure superior holding power for OSB and plywood construction with the mechanical galvanized #14 roofing screw. Great pull-out resistance is this fastener’s strength. Tight-sealing EPDM washer and type 17 point. We can quickly ship, so your next project remains on time.
- Mechanical galvanized
- Galvanized EPDM washer 14MM OD
- Fastens metal to wood
- Use for OSB and other plywood
- Great pull-out resistance
| PART # | DESCRIPTION | HEAD STYLE | DRILL PT | PCS/BOX | LBS/BOX |
|---|---|---|---|---|---|
|
141FG |
#14 x 1″ |
5/16″ Hex |
T-17 |
2,000 |
28.6
|
|
14112FG |
#14 x 1-1/2″ |
5/16″ Hex |
T-17 |
1,500 |
27.8
|
|
142FG |
#14 x 2″ |
5/16″ Hex |
T-17 |
1.000 |
23.4
|
|
14212FG |
#14 x 2-1/2″ |
5/16″ Hex |
T-17 |
500 |
14.2
|
| SUBSTRATE | PENETRATION | PULL-OUT STRENGTH |
|---|---|---|
|
3/4″ Ply |
Full |
621
|
|
1/2″ Ply |
Full |
449
|
|
7/16″ OSB |
Full |
209 |
|
2 x Yellow Pine |
1″ |
992
|
|
2 x Spruce Pine Fir |
1″ |
1,294
|
|
2 x Spruce Pine Fir |
1 – 1/2″ |
1,597
|
| SHEAR | TENSILE | TORSIONAL |
|---|---|---|
|
2,980 |
4,492 |
175 |
| SUBSTRATE | GAUGE | THICKNESS | PULL-OVER STRENGTH |
|---|---|---|---|
|
AZ55 Galvalume |
29 |
.014
|
535
|
|
AZ55 Galvalume |
26 |
.018 |
743
|
|
AZ55 Galvalume |
24 |
.024 |
1,052
|

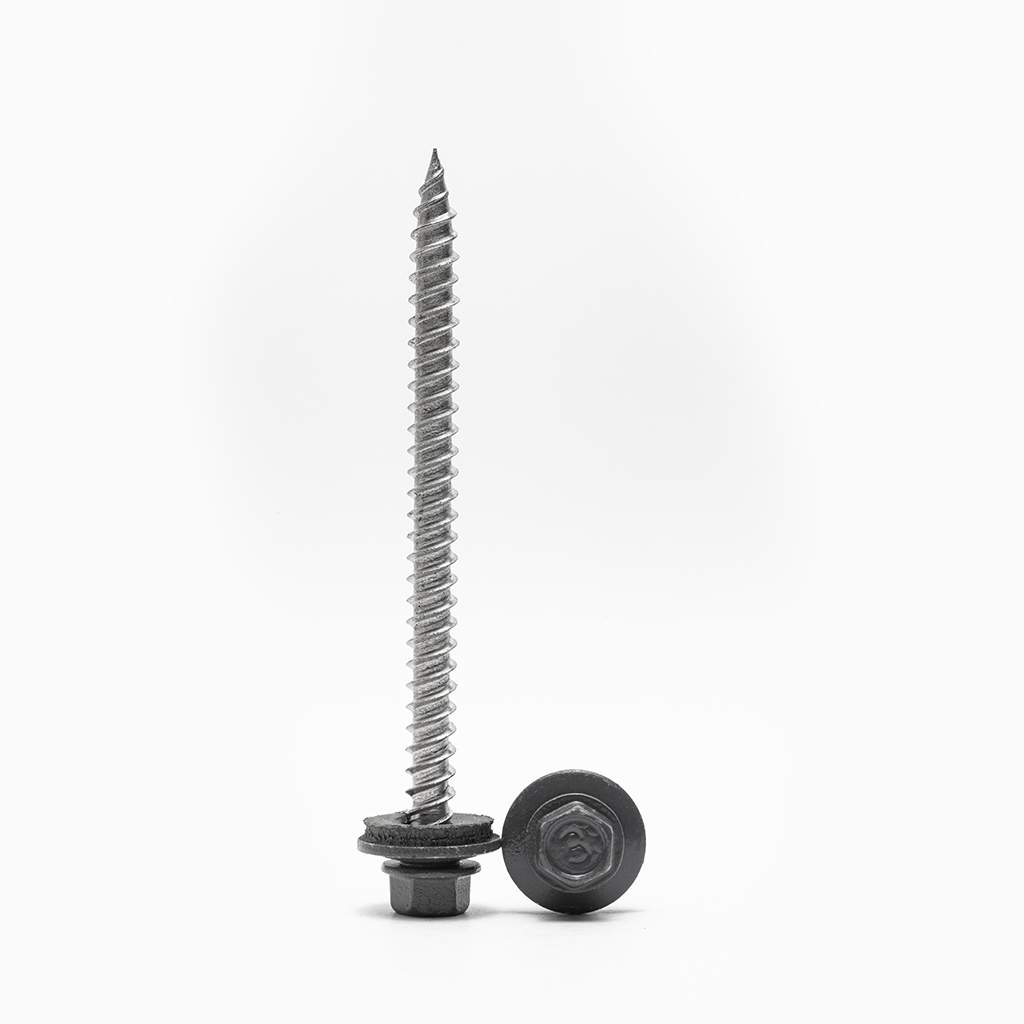

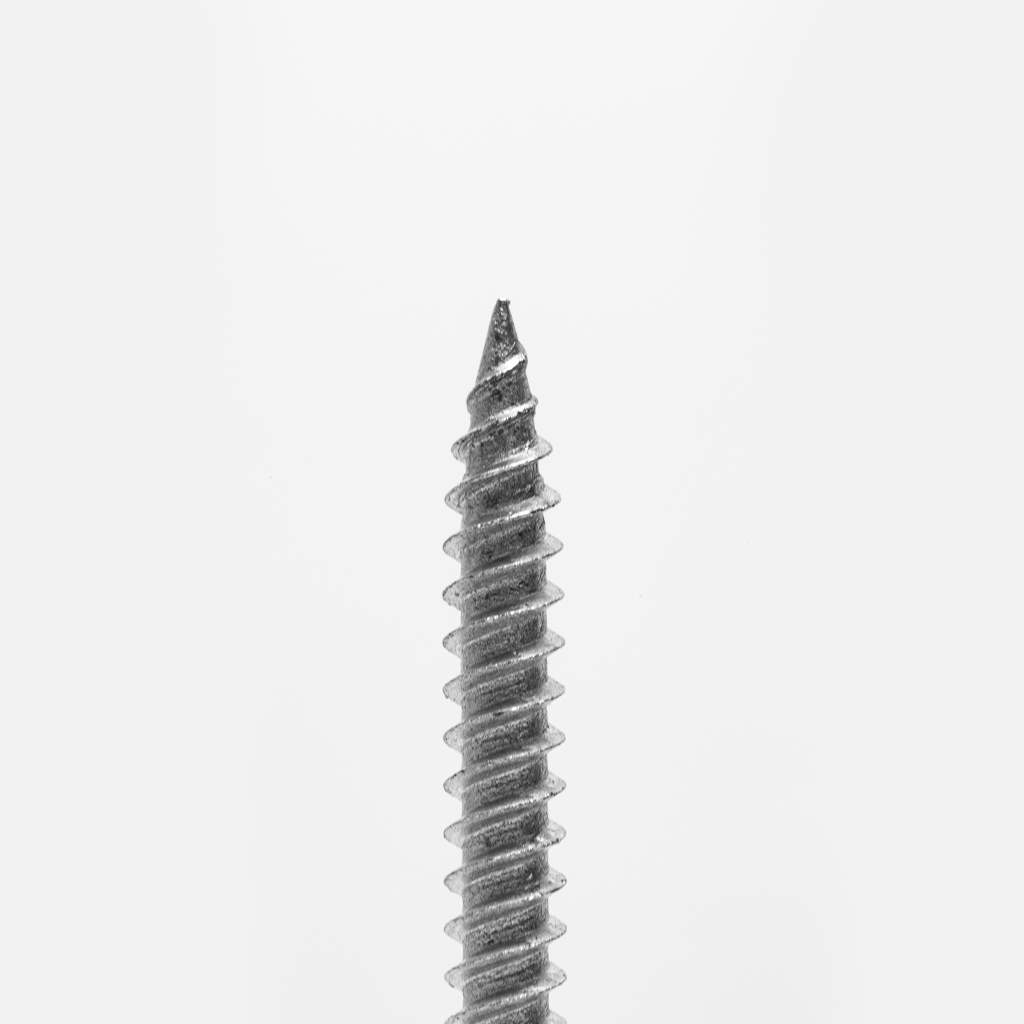

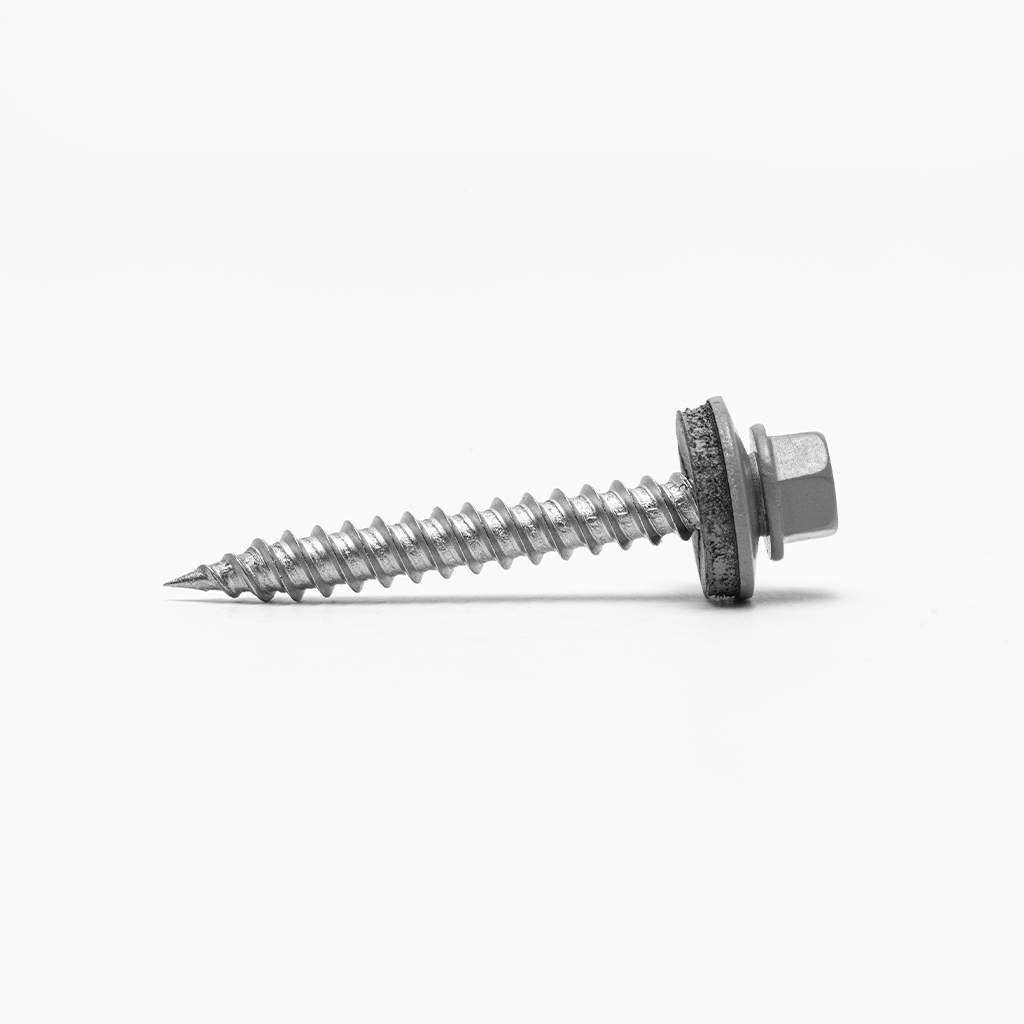

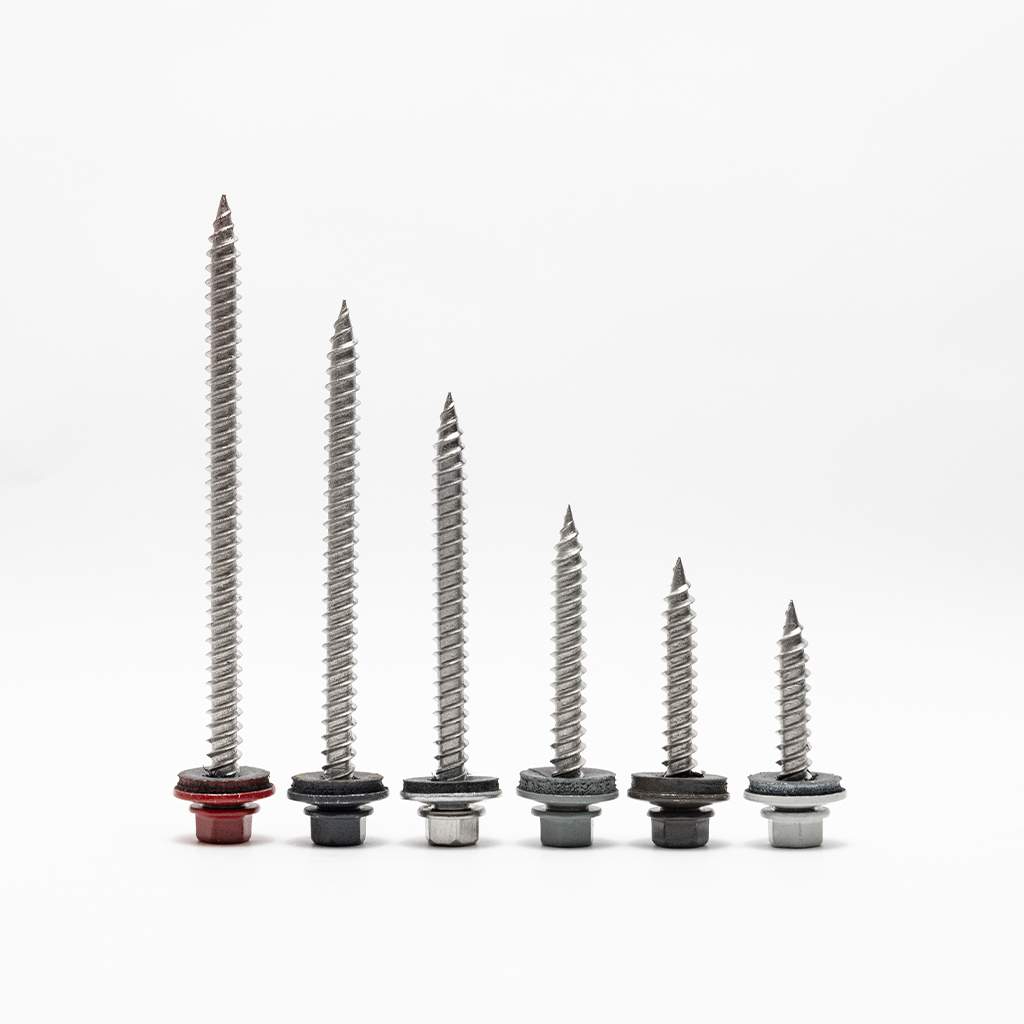

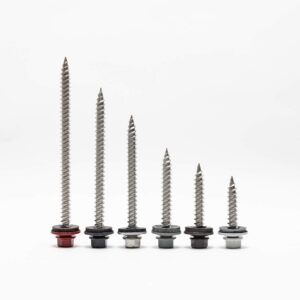

#9 Stainless Steel
The stainless steel Fastgrip™ series of screws does not compromise on the true size of its aluminum 1/2″ diameter washer. Available in 40-plus quick ship colors, the Fastgrip™ easily drills through aluminum panels and is prepared to handle tough installation conditions. The Fastgrip™ stainless steel is backed by a 50-year warranty.
- 300 series stainless steel
- Aluminum EPDM washer 1/2″ OD
- Fastens metal to wood
- Easily drills through aluminum panels
| PART # | DESCRIPTION | HEAD STYLE | DRILL PT | PCS/BOX | LBS/BOX |
|---|---|---|---|---|---|
|
91SS |
#9 x 1″ |
1/4″ Hex |
Sharp Point |
3,000 |
24.2
|
|
9114SS |
#9 x 1-1/4″ |
1/4″ Hex |
Sharp Point |
2,500 |
22.7
|
|
9112SS |
#9 x 1-1/2″ |
1/4″ Hex |
Sharp Point |
2,500 |
26.1
|
|
92SS |
#9 x 2″ |
1/4″ Hex |
Sharp Point |
2,000 |
24.7
|
|
9212SS |
#9 x 2-1/2″ |
1/4″ Hex |
Sharp Point |
1,500 |
22.3
|
|
93SS |
#9 x 3″ |
1/4″ Hex |
Sharp Point |
1,000 |
17.5
|
| SUBSTRATE | PENETRATION | PULL-OUT STRENGTH |
|---|---|---|
|
3/4″ Ply |
Full |
465
|
|
1/2″ Ply |
Full |
327
|
|
7/16″ OSB |
Full |
180
|
|
2 x Yellow Pine |
1″ |
894
|
|
2 x Spruce Pine Fir |
1″ |
692
|
|
2 x Spruce Pine Fir |
1 – 1/2″ |
1,264
|
| SHEAR | TENSILE | TORSIONAL |
|---|---|---|
|
1,280 |
1,455 |
52
|
| SUBSTRATE | GAUGE | THICKNESS | PULL-OVER STRENGTH |
|---|---|---|---|
|
AZ55 Galvalume |
29 |
.014
|
411
|
|
AZ55 Galvalume |
26 |
.018 |
567
|
|
AZ55 Galvalume |
24 |
.024 |
788
|
