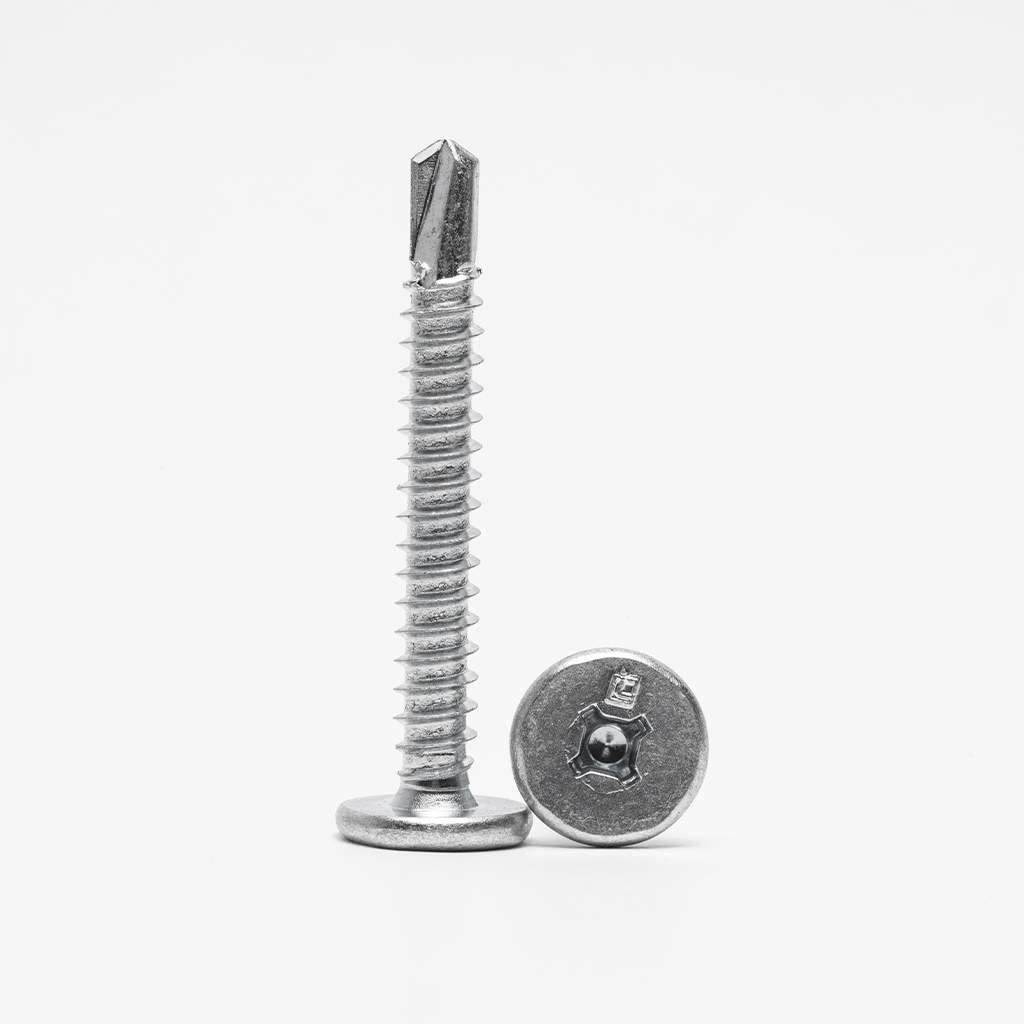

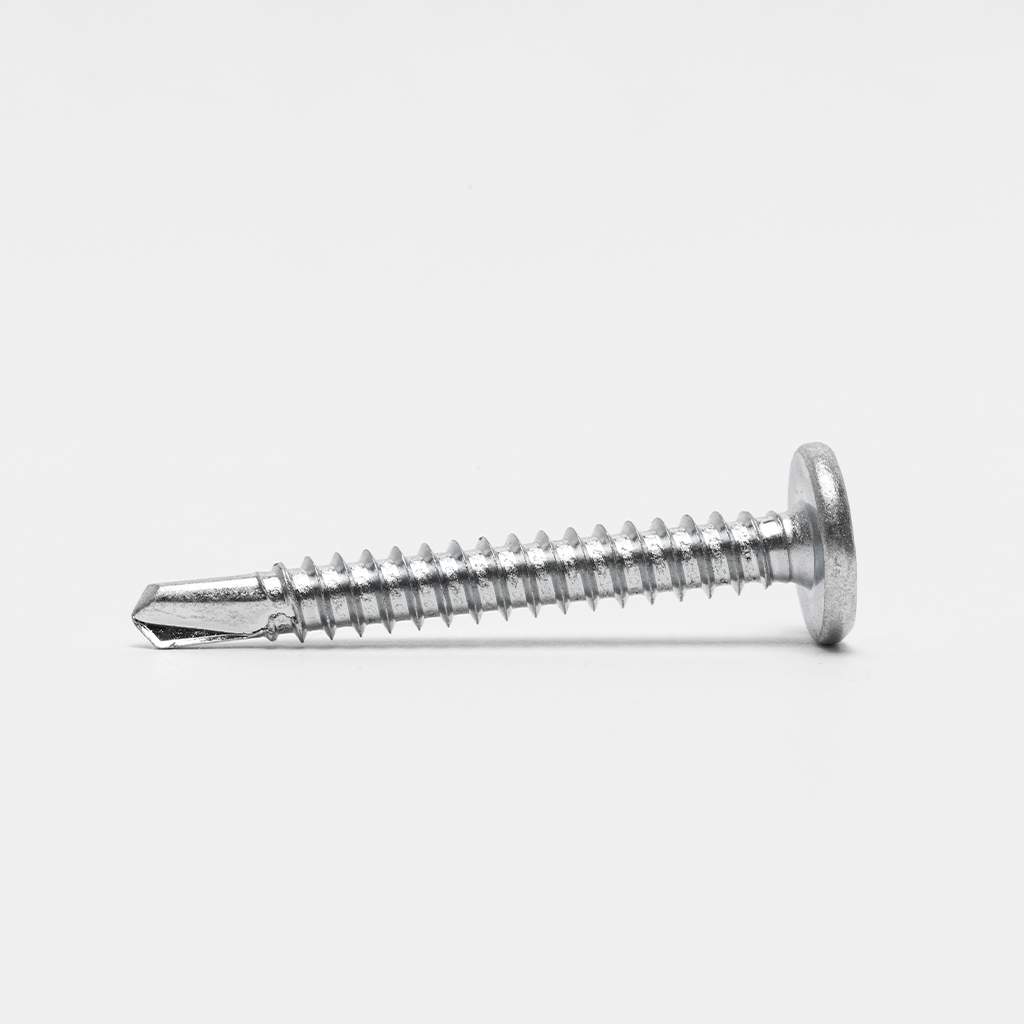

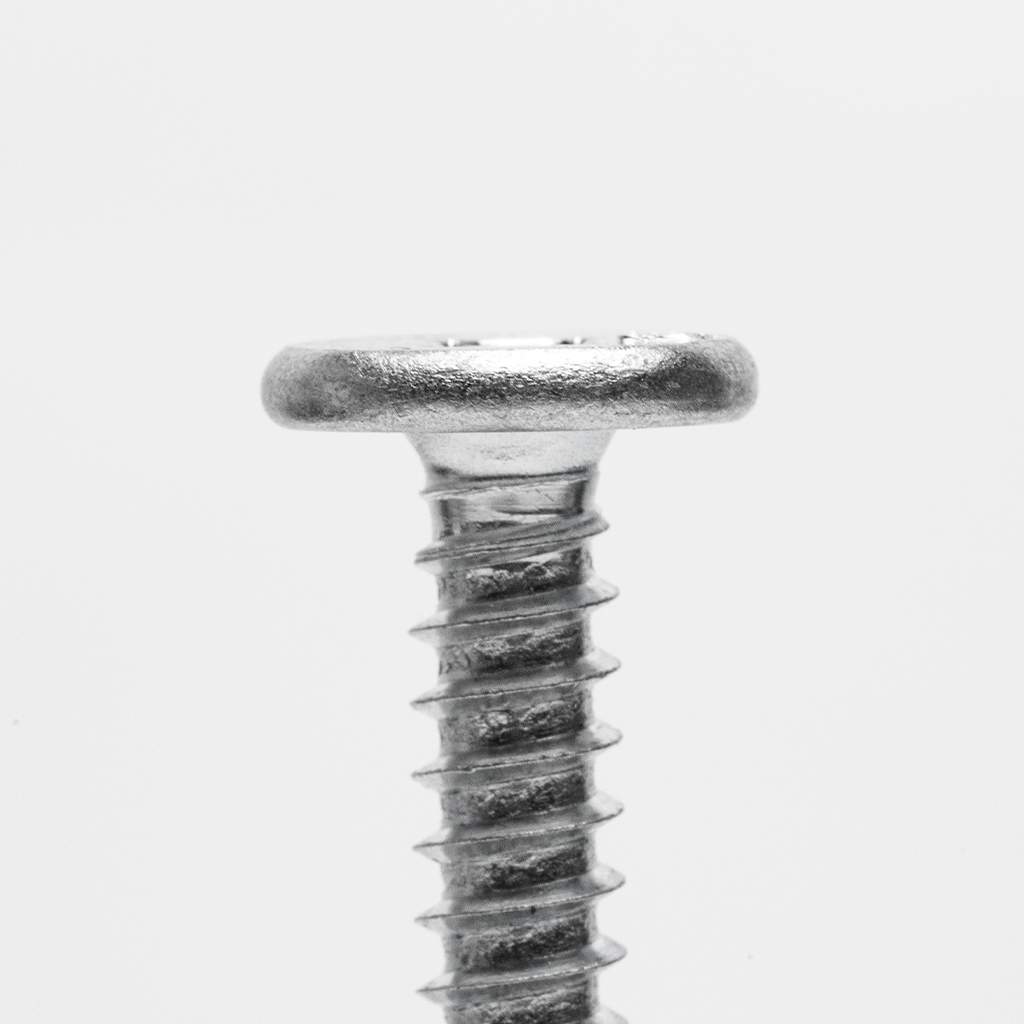

Pancake Head Self-Drilling

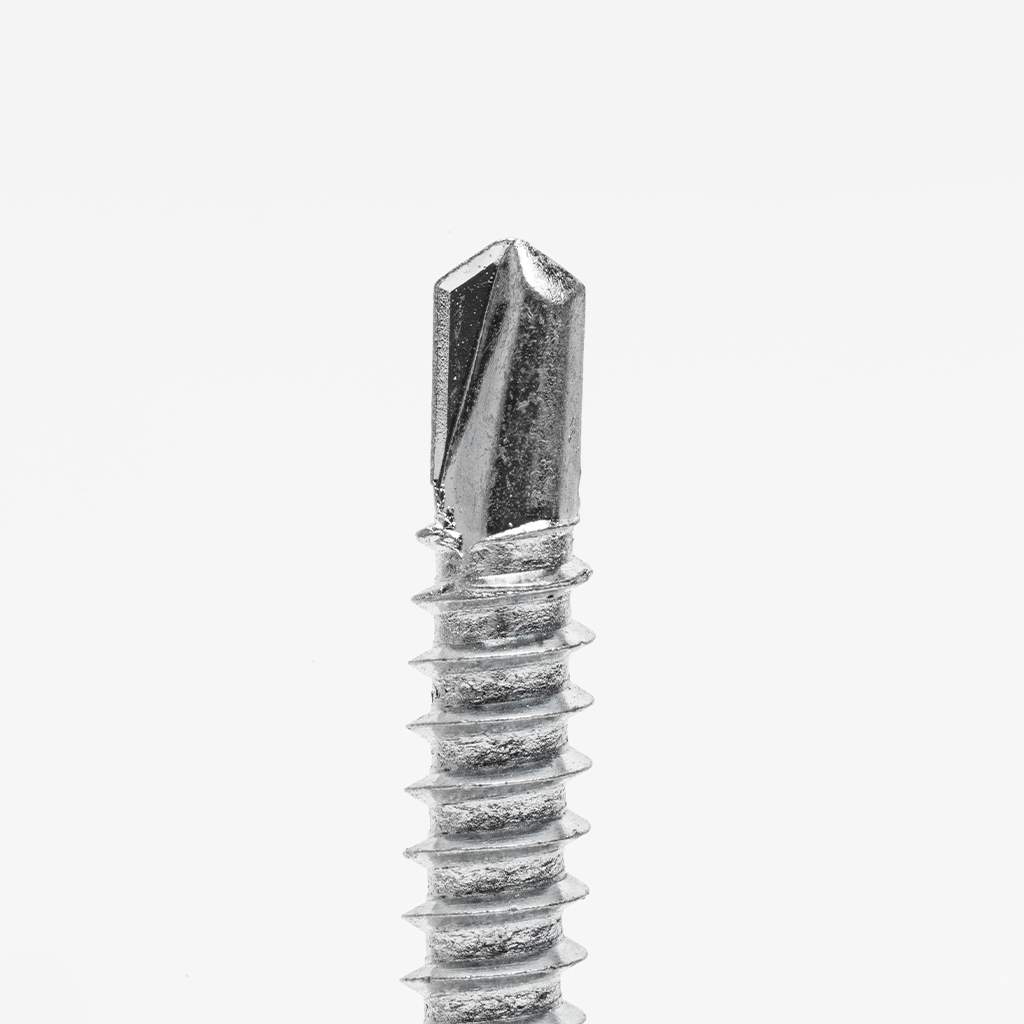

Zinc Plated with #3 Self-Drilling point for metal-to-metal applications. In-stock colors ship quickly or match to your roof color.
- Designed to Fasten Standing Seam Clips
- Fastens Metal to Metal
- One Square Driver Bit Box
- Available in Any Color! Ask about In-Stock Colors!
| PART # | DESCRIPTION | HEAD STYLE | DRILL PT | PCS/BOX | LBS/BOX |
|---|---|---|---|---|---|
|
101PHSD |
#10 x 1″ |
Phillips/Square |
#3 |
5,000 |
34.9
|
|
10112PHSD |
#10 x 1 – 1/2″ |
Phillips/Square |
#3 |
2,500 |
24.1
|
| SUBSTRATE | PENETRATION | PULL-OUT STRENGTH |
|---|---|---|
|
3/4″ Ply |
Full |
387
|
|
1/2″ Ply |
Full |
274
|
|
7/16″ OSB |
Full |
201
|
|
2 x Yellow Pine |
1″ |
490
|
|
2 x Spruce Pine Fir |
1″ |
434
|
|
2 x Spruce Pine Fir |
1 – 1/2″ |
646
|
| SHEAR | TENSILE | TORSIONAL |
|---|---|---|
|
1,620 |
1,900 |
77 |
| SUBSTRATE | GAUGE | THICKNESS | PULL-OVER STRENGTH |
|---|---|---|---|
|
AZ55 Galvalume |
29 |
.014
|
425 |
|
AZ55 Galvalume |
26 |
.018 |
717
|
|
AZ55 Galvalume |
24 |
.024 |
1,120
|

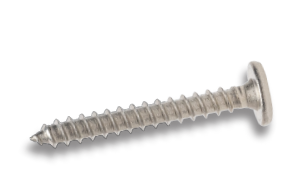

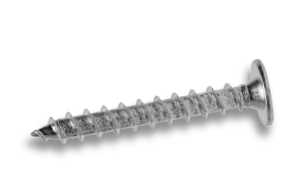

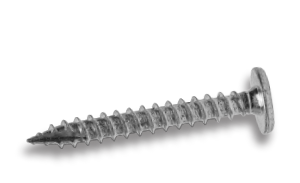

ALSO AVAILABLE
