METAL TO WOOD SCREWS

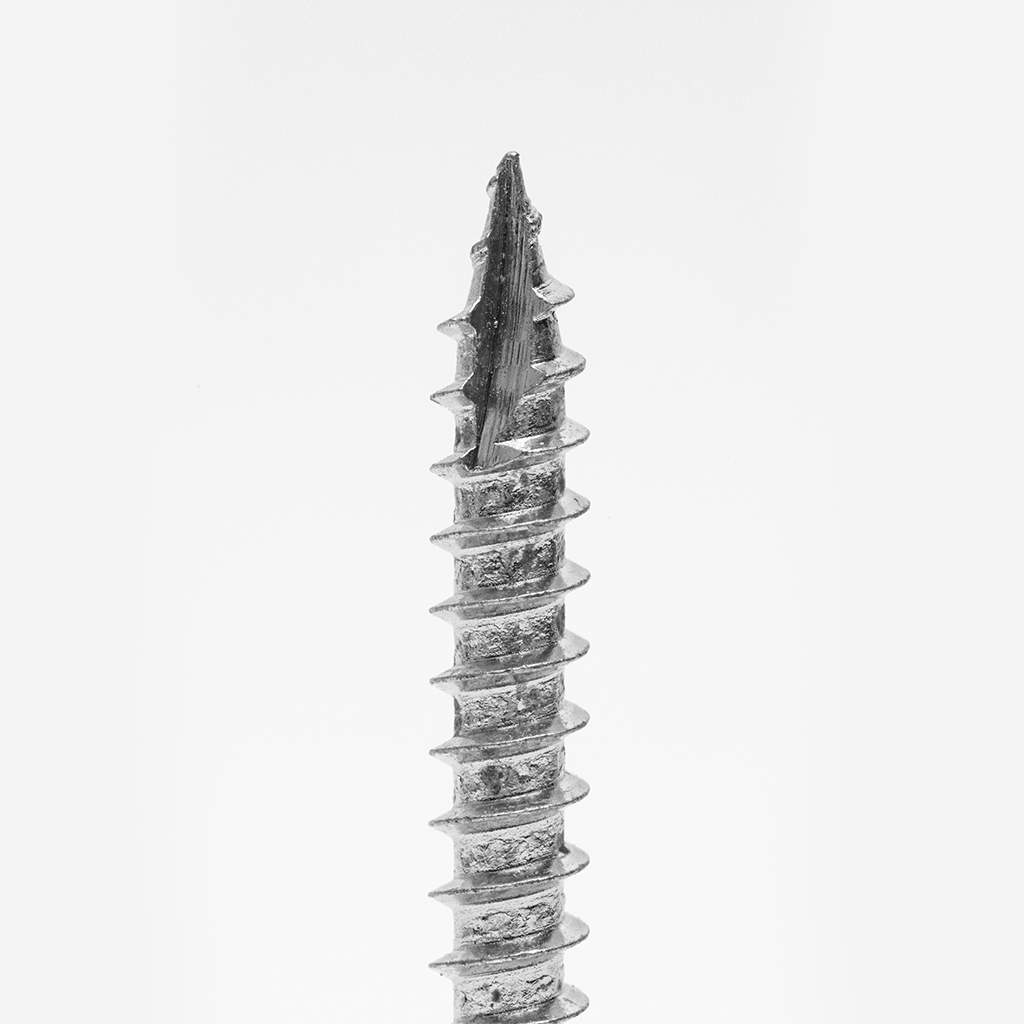

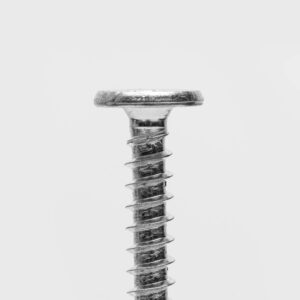

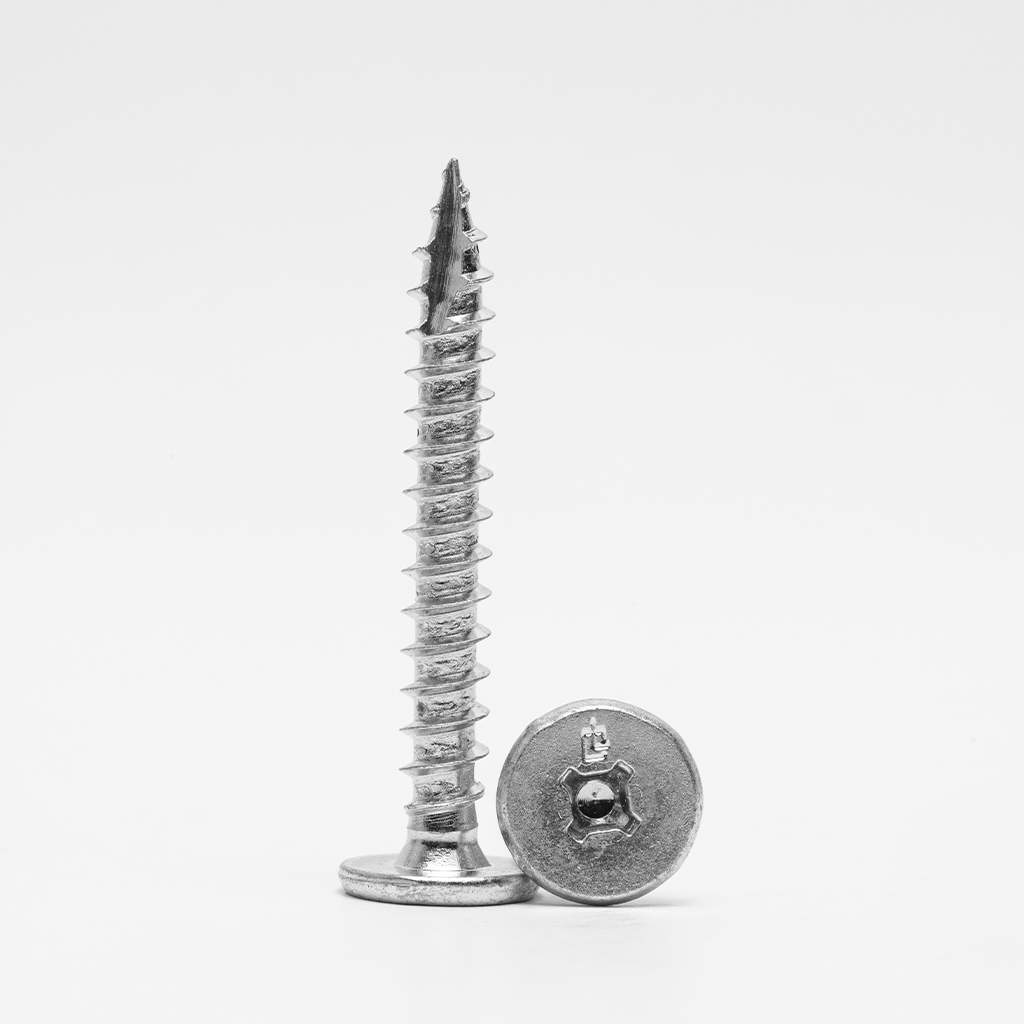

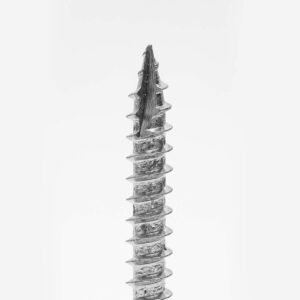

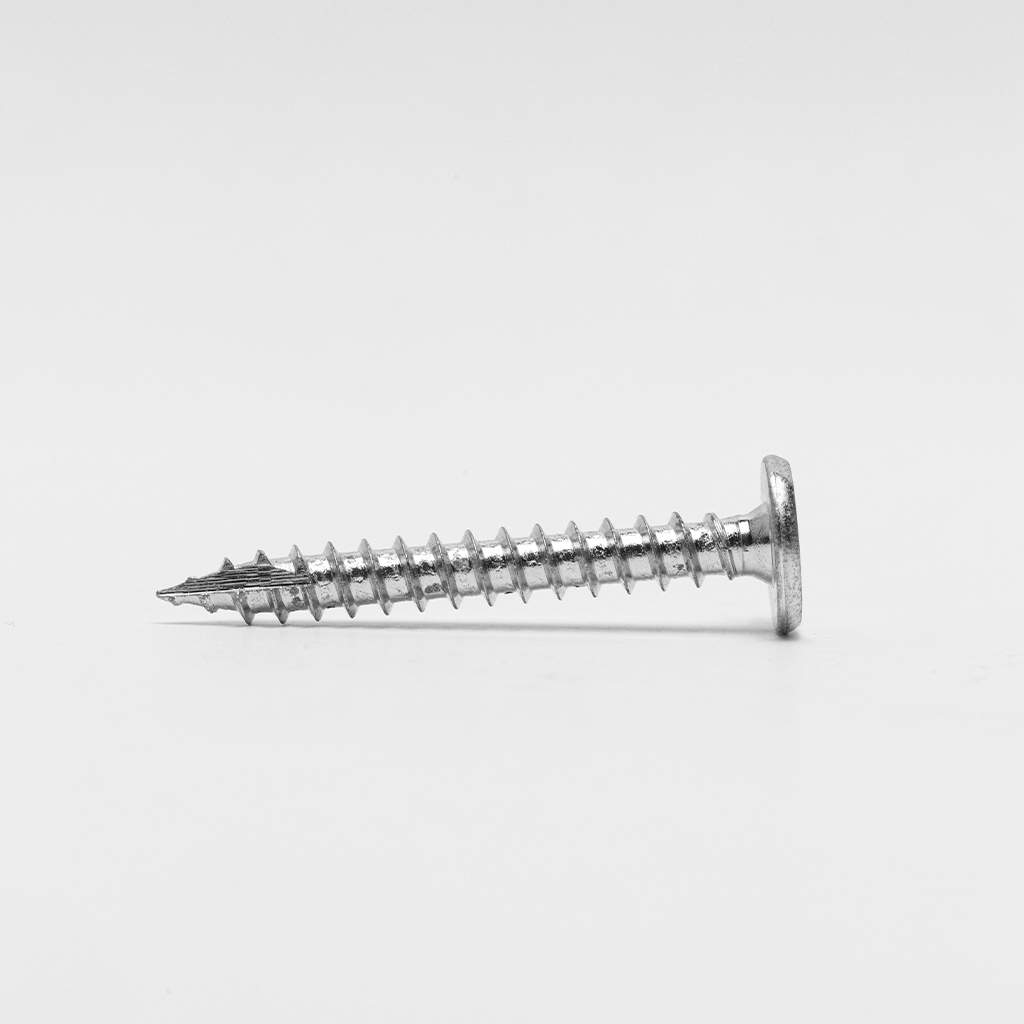

T-17
Choose the Zinc Plated Pancake Head to achieve a low-profile, flush finish. T-17 drill points are available in multiple lengths. In-stock colors ship quickly or match your roof color!
- Designed to Fasten Standing Seam Clips
- Fastens Metal to Wood or Metal to Metal
- One Square Driver Bit per Box
- Available in any Color! Ask About In-Stock Colors
| PART # | DESCRIPTION | HEAD STYLE | DRILL PT | PCS/BOX | LBS/BOX |
|---|---|---|---|---|---|
|
101PH17 |
#10 x 1″ |
Phillips/Square |
T-17 |
5,000 |
33.9
|
|
10112PH17 |
#10 x 1 – 1/2″ |
Phillips/Square |
T-17 |
2,500 |
23.6
|
|
102PH17 |
#10 x 2″ |
Phillips/Square |
T-17 |
2,000 |
23.1
|
| SUBSTRATE | PENETRATION | PULL-OUT STRENGTH |
|---|---|---|
|
3/4″ Ply |
Full |
464
|
|
1/2″ Ply |
Full |
306
|
|
7/16″ OSB |
Full |
228 |
|
2 x Yellow Pine |
1″ |
704 |
|
2 x Spruce Pine Fir |
1″ |
653 |
|
2 x Spruce Pine Fir |
1 – 1/2″ |
1,102
|
| SHEAR | TENSILE | TORSIONAL |
|---|---|---|
|
1,500 |
1,930 |
70 |
| SUBSTRATE | GAUGE | THICKNESS | PULL-OVER STRENGTH |
|---|---|---|---|
|
AZ55 Galvalume |
29 |
.014
|
467
|
|
AZ55 Galvalume |
26 |
.018 |
626 |
|
AZ55 Galvalume |
24 |
.024 |
992
|

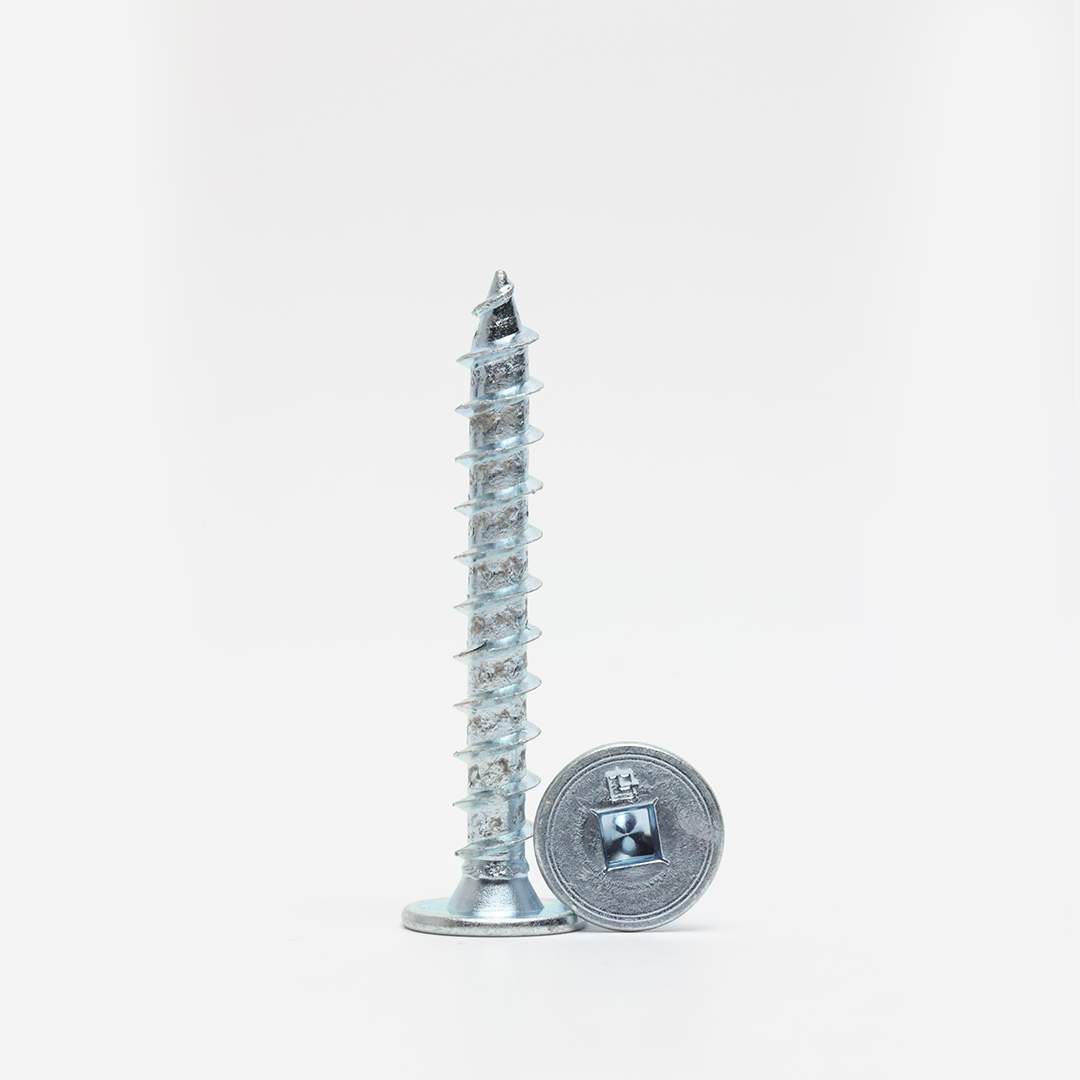

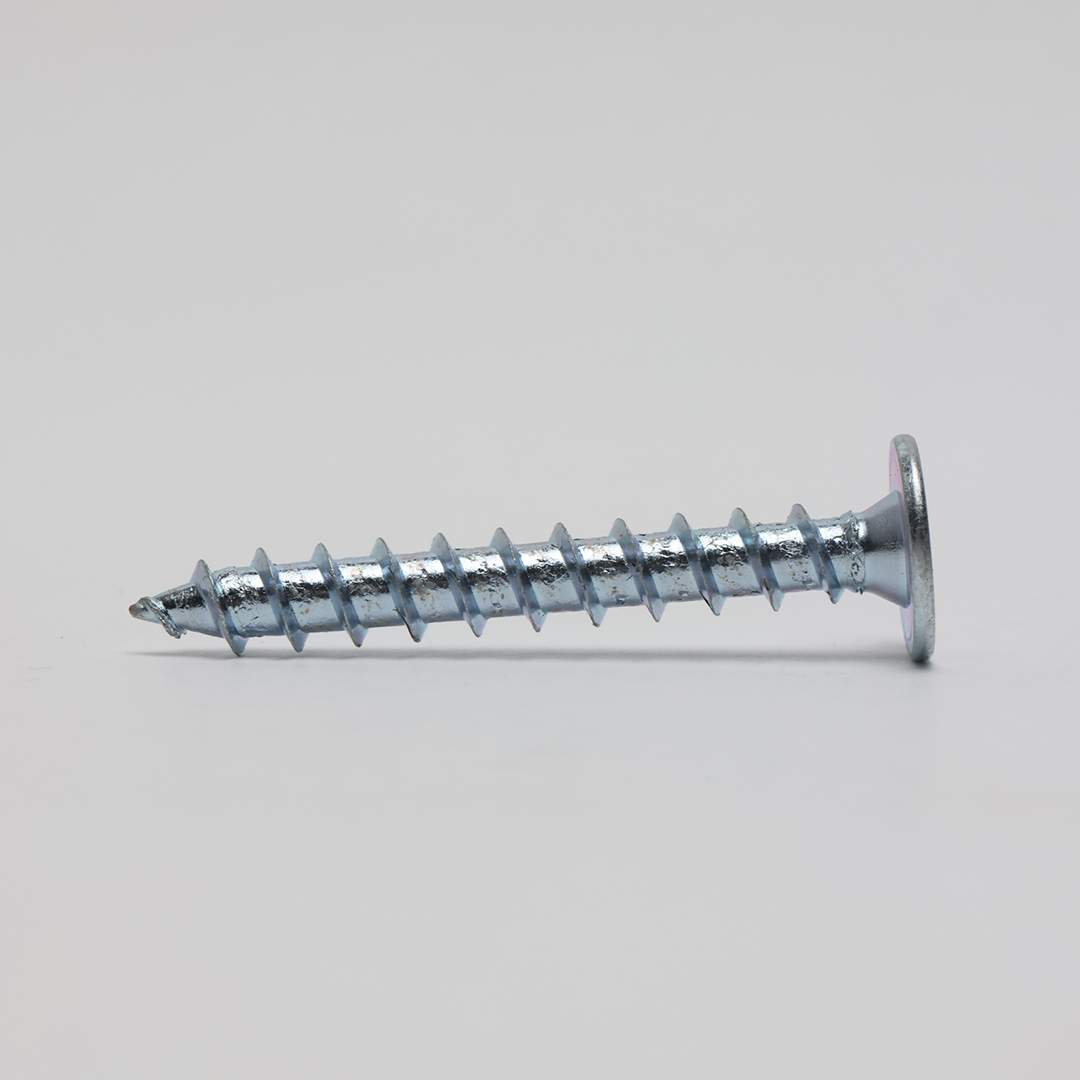

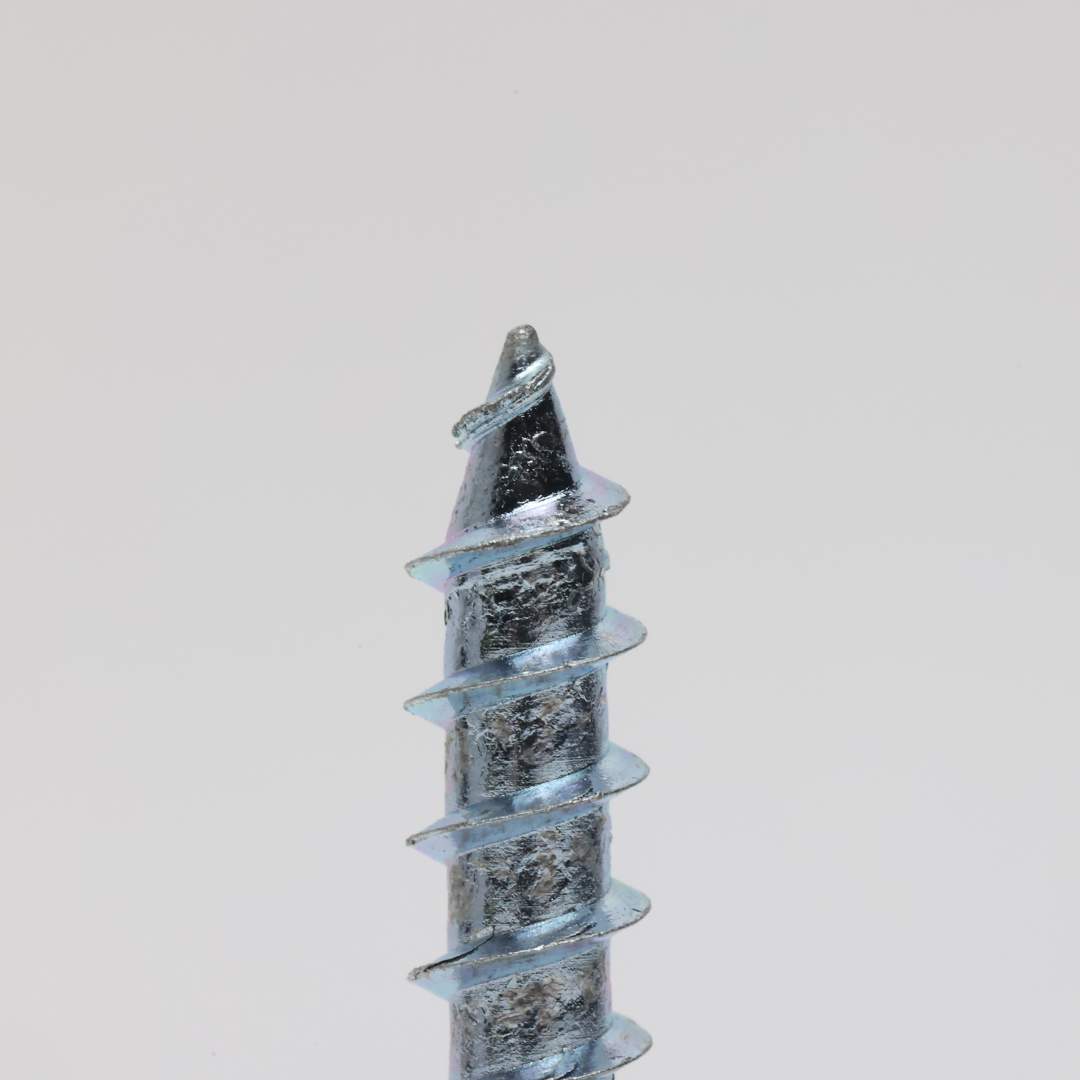

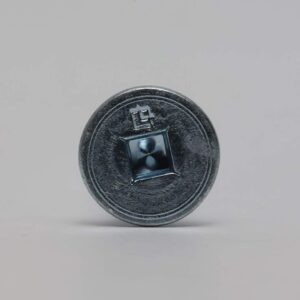

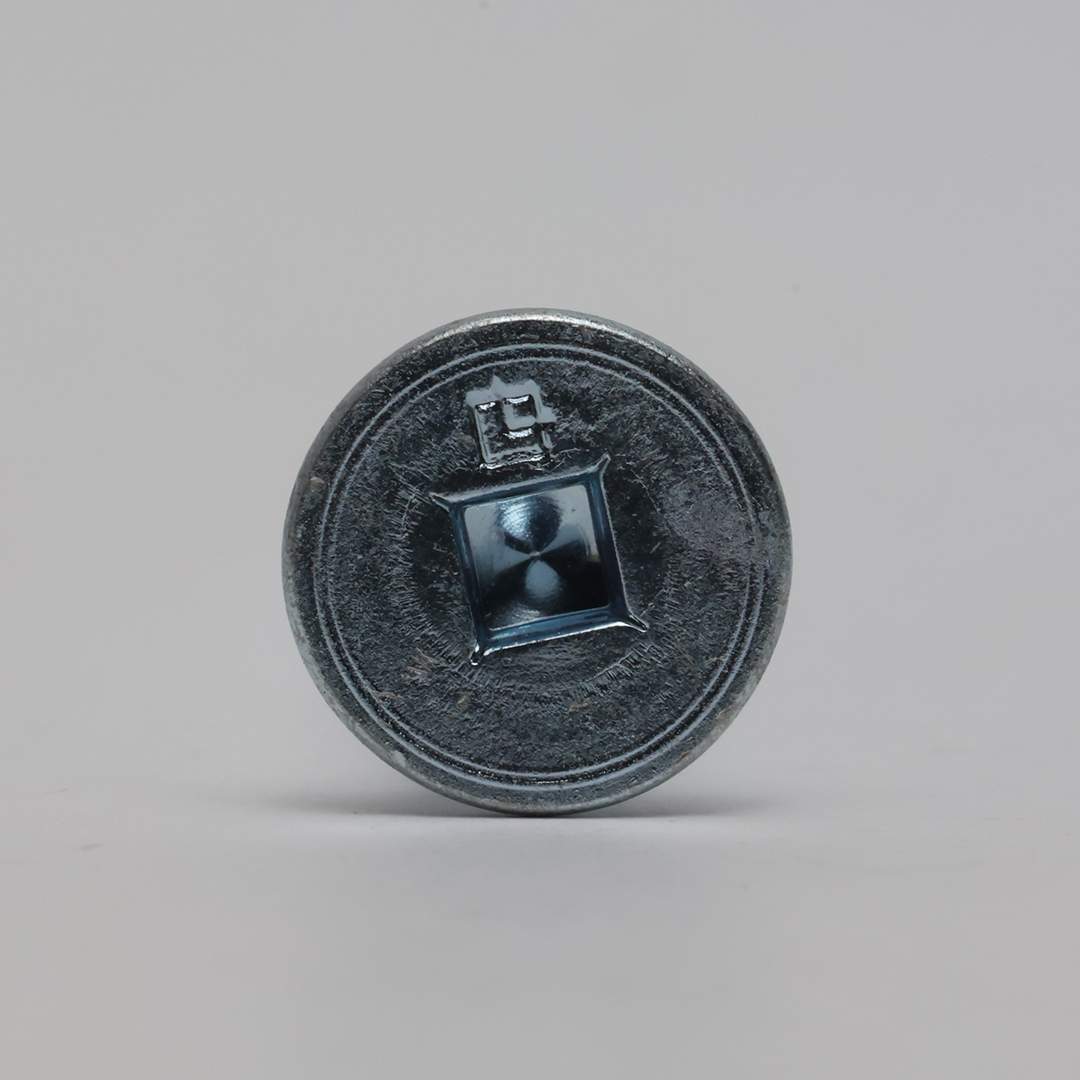

Low-Profile
This Ultra-Thin Pancake Head fastener is designed to fasten flush and lay flat without dimpling or showing through the panel. Available in three sizes with a SP drill point and #2 square, low-profile head style.
- Designed to Fasten Flush and Lay Flat Without Dimpling or Showing Through the Panel
- Ultra-Thin Pancake Head
- Fastens Metal to Wood
- One Square Driver Bit per Box
| PART # | DESCRIPTION | HEAD STYLE | DRILL PT | PCS/BOX | LBS/BOX |
|---|---|---|---|---|---|
|
101PHLP |
#10 x 1″ |
#2 Square |
Sharp Point |
5,000 |
30.5
|
|
10112PHLP |
#10 x 1 – 1/2″ |
#2 Square |
Sharp Point |
2,500 |
26.8 |
|
102PHLP |
#10 x 2″ |
#2 Square |
Sharp Point |
2,000 |
23.2 |
|
10212PHLP |
#10 x 2 – 1/2″ |
#2 Square |
Sharp Point |
1,500 |
21.0 |
| SUBSTRATE | PENETRATION | PULL-OUT STRENGTH |
|---|---|---|
|
3/4″ Ply |
Full |
484 |
|
1/2″ Ply |
Full |
280
|
|
7/16″ OSB |
Full |
196
|
|
2 x Yellow Pine |
1″ |
677
|
|
2 x Spruce Pine Fir |
1″ |
814
|
|
2 x Spruce Pine Fir |
1 – 1/2″ |
909
|
| SHEAR | TENSILE | TORSIONAL |
|---|---|---|
|
1,750 |
2,544 |
83 |
| SUBSTRATE | GAUGE | THICKNESS | PULL-OVER STRENGTH |
|---|---|---|---|
|
AZ55 Galvalume |
29 |
.014
|
465 |
|
AZ55 Galvalume |
26 |
.018 |
649
|
|
AZ55 Galvalume |
24 |
.024 |
978 |

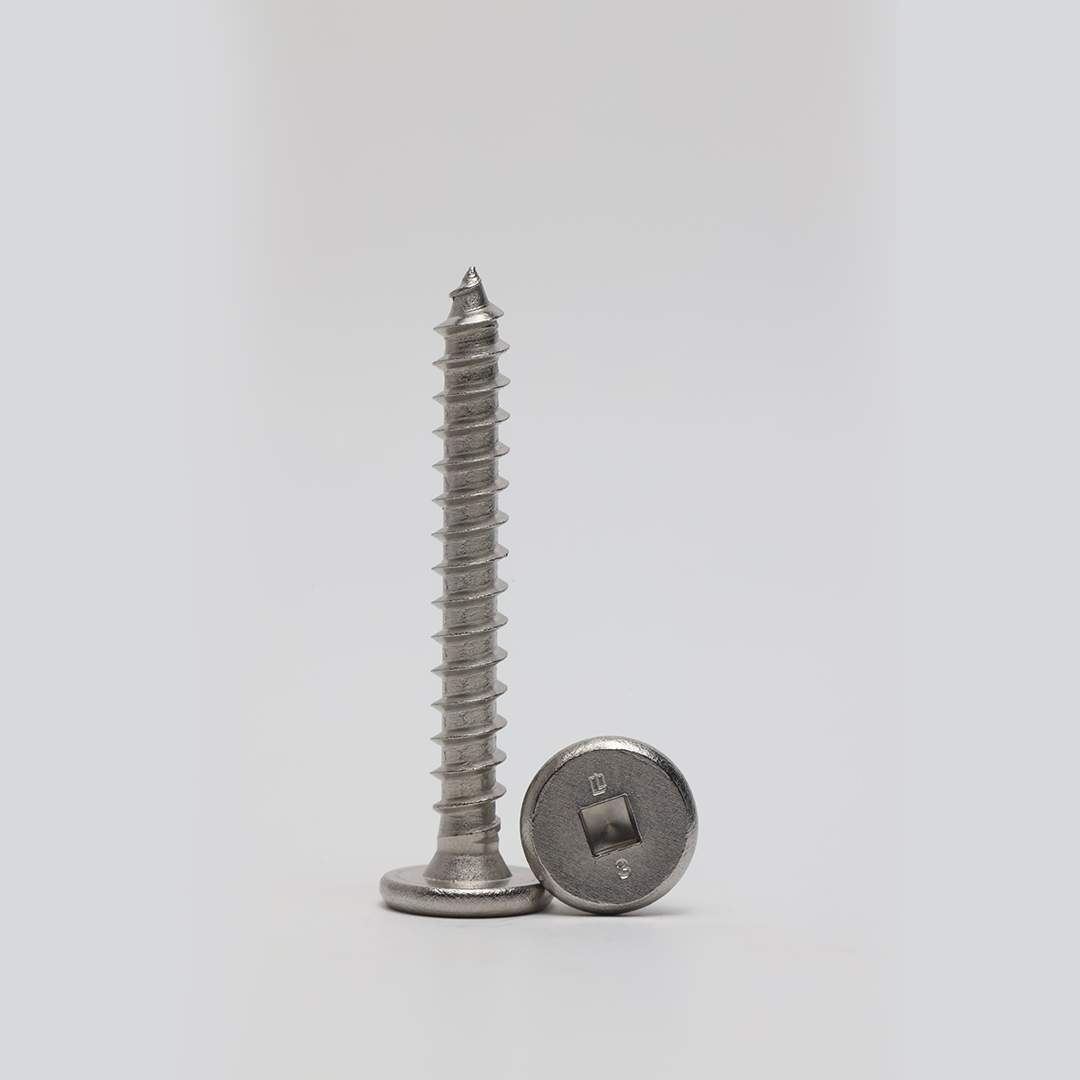

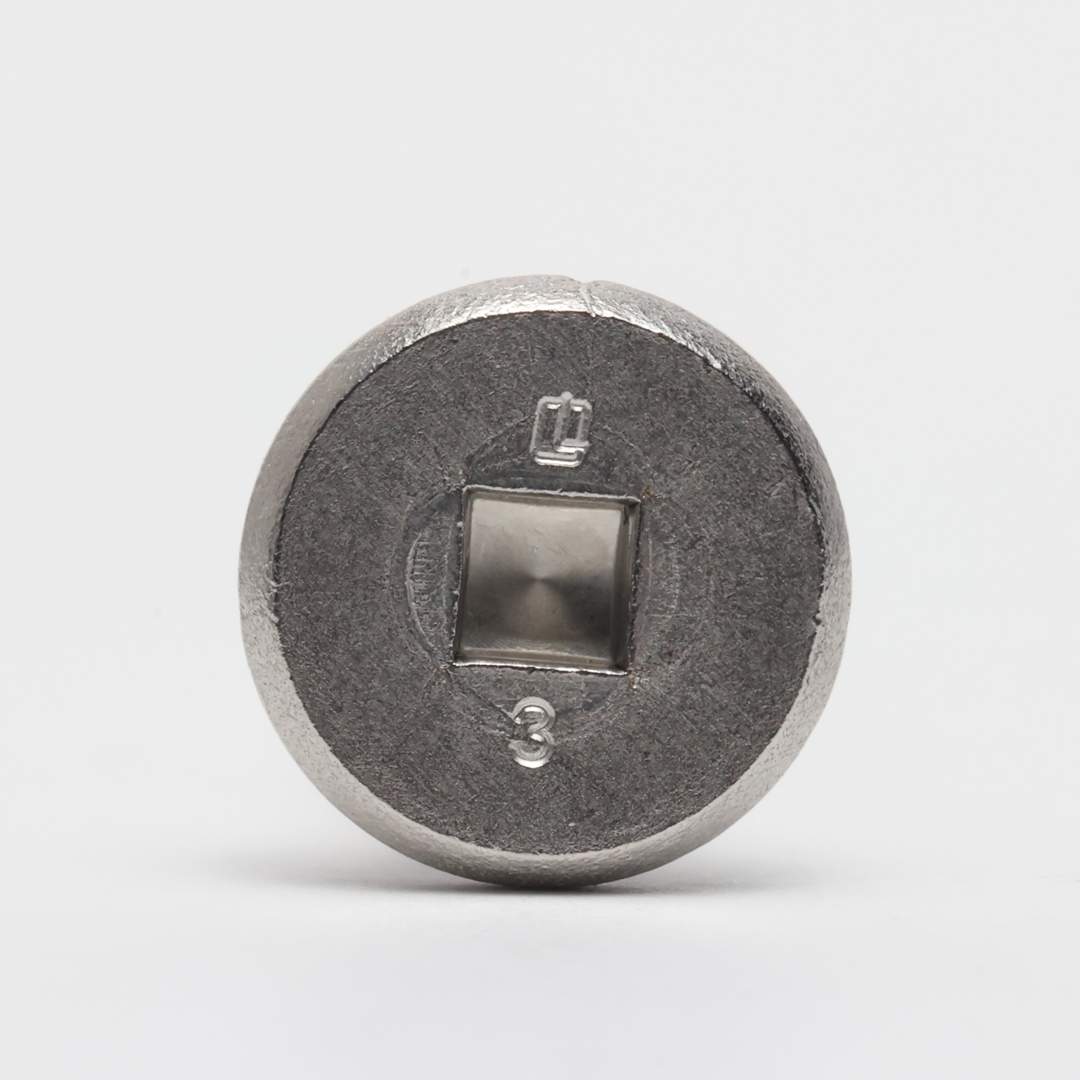

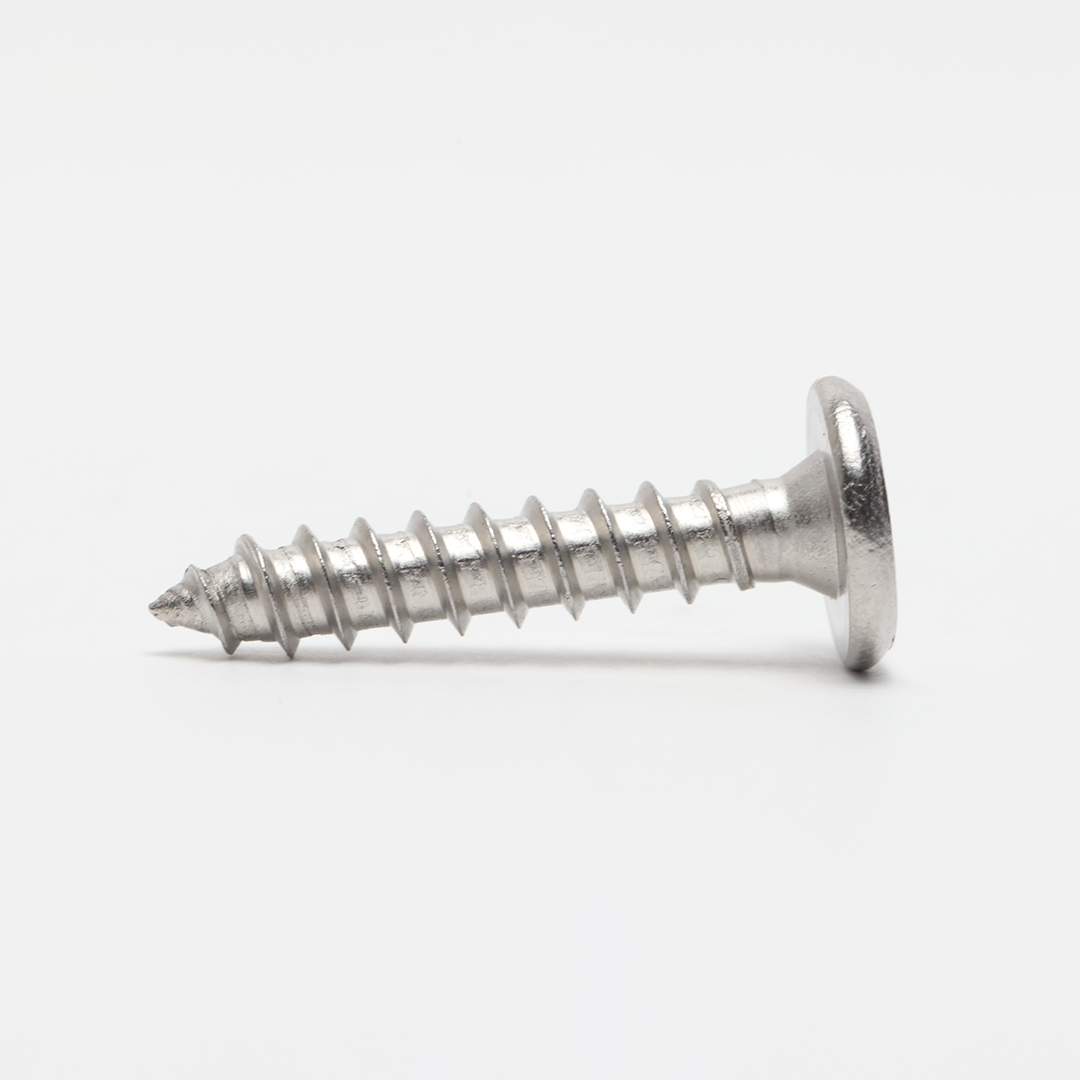

300 Series Stainless Steel
Choose Stainless Steel for a low-profile, flush finish. Sharp point screw available in multiple lengths. In-stock colors ship quickly or match your roof color!
- Designed to Fasten Standing Seam Clips
- Fastens Metal to Wood or Metal to Metal
- One Square Driver Bit per Box
- Available in any Color! Ask About In-Stock Colors
| PART # | DESCRIPTION | HEAD STYLE | DRILL PT | PCS/BOX | LBS/BOX |
|---|---|---|---|---|---|
|
101PHSS |
#10 x 1″ |
#2 Square |
Sharp Point |
5,000 |
37.9 |
|
10112PHSS |
#10 x 1 – 1/2″ |
#2 Square |
Sharp Point |
2,500 |
25.9 |
|
102PHSSS |
#10 x 2″ |
#2 Square |
Sharp Point |
2,000 |
31.8
|
| SUBSTRATE | PENETRATION | PULL-OUT STRENGTH |
|---|---|---|
|
3/4″ Ply |
Full |
454 |
|
1/2″ Ply |
Full |
352
|
|
7/16″ OSB |
Full |
187
|
|
2 x Yellow Pine |
1″ |
689
|
|
2 x Spruce Pine Fir |
1″ |
578 |
|
2 x Spruce Pine Fir |
1 – 1/2″ |
1,169 |
| SHEAR | TENSILE | TORSIONAL |
|---|---|---|
|
1,260 |
1,591 |
53 |
| SUBSTRATE | GAUGE | THICKNESS | PULL-OVER STRENGTH |
|---|---|---|---|
|
AZ55 Galvalume |
29 |
.014
|
394 |
|
AZ55 Galvalume |
26 |
.018 |
65
|
|
AZ55 Galvalume |
24 |
.024 |
920 |
