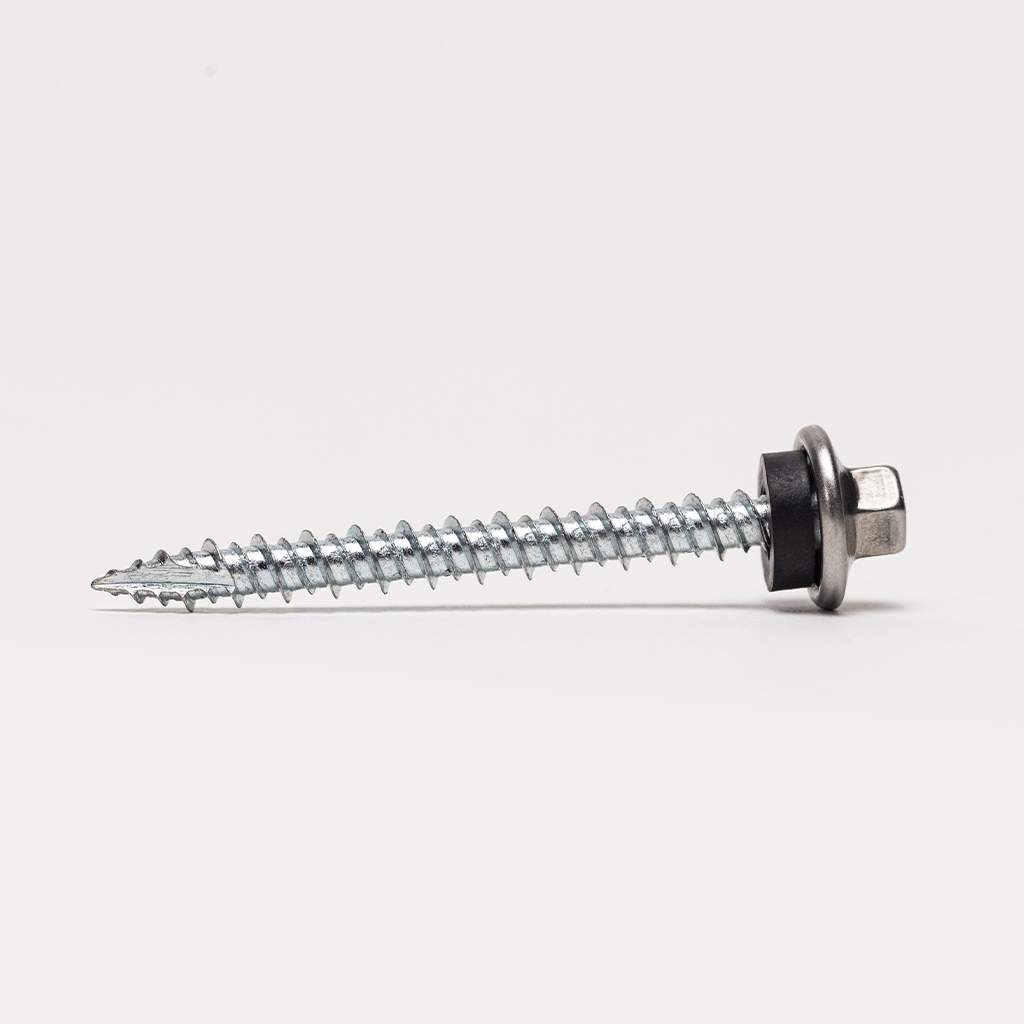

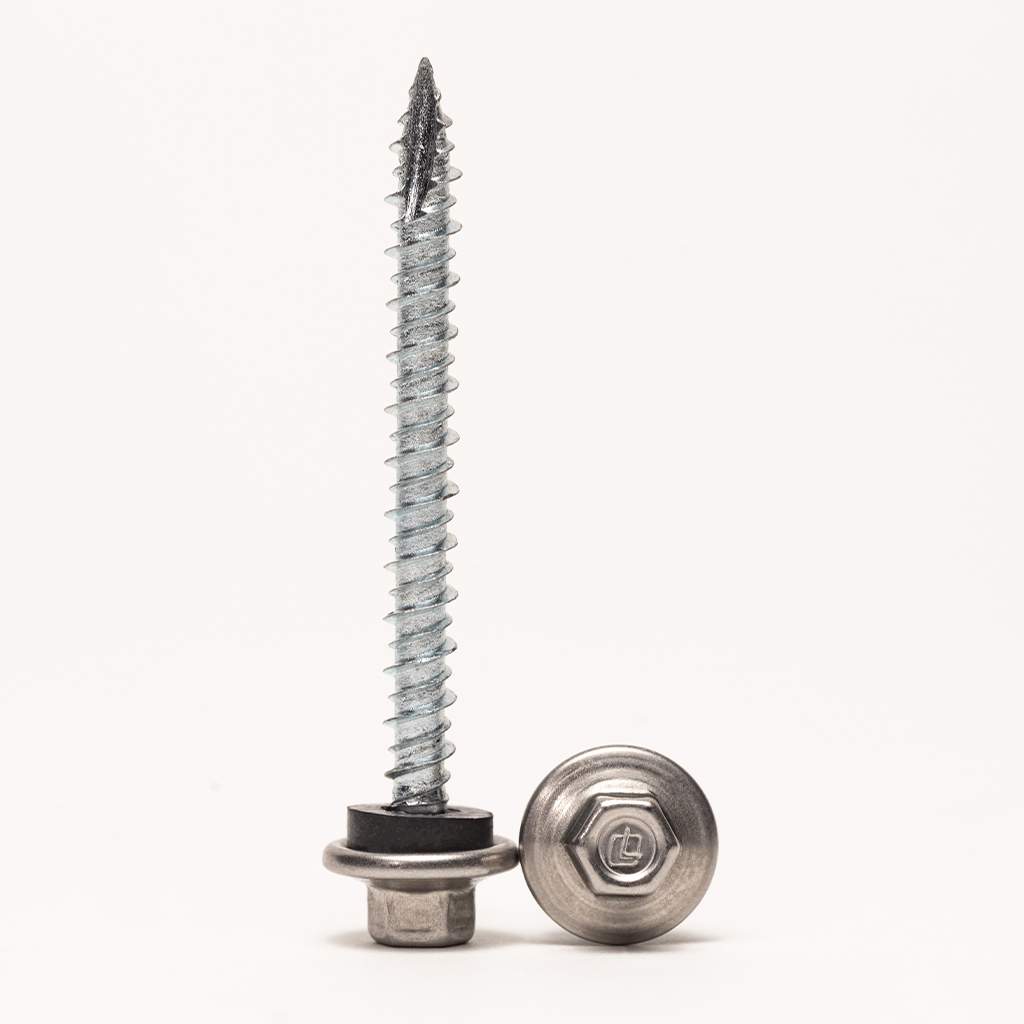

STAINLESS STEEL CAP - METAL TO WOOD
#10 HI-LO

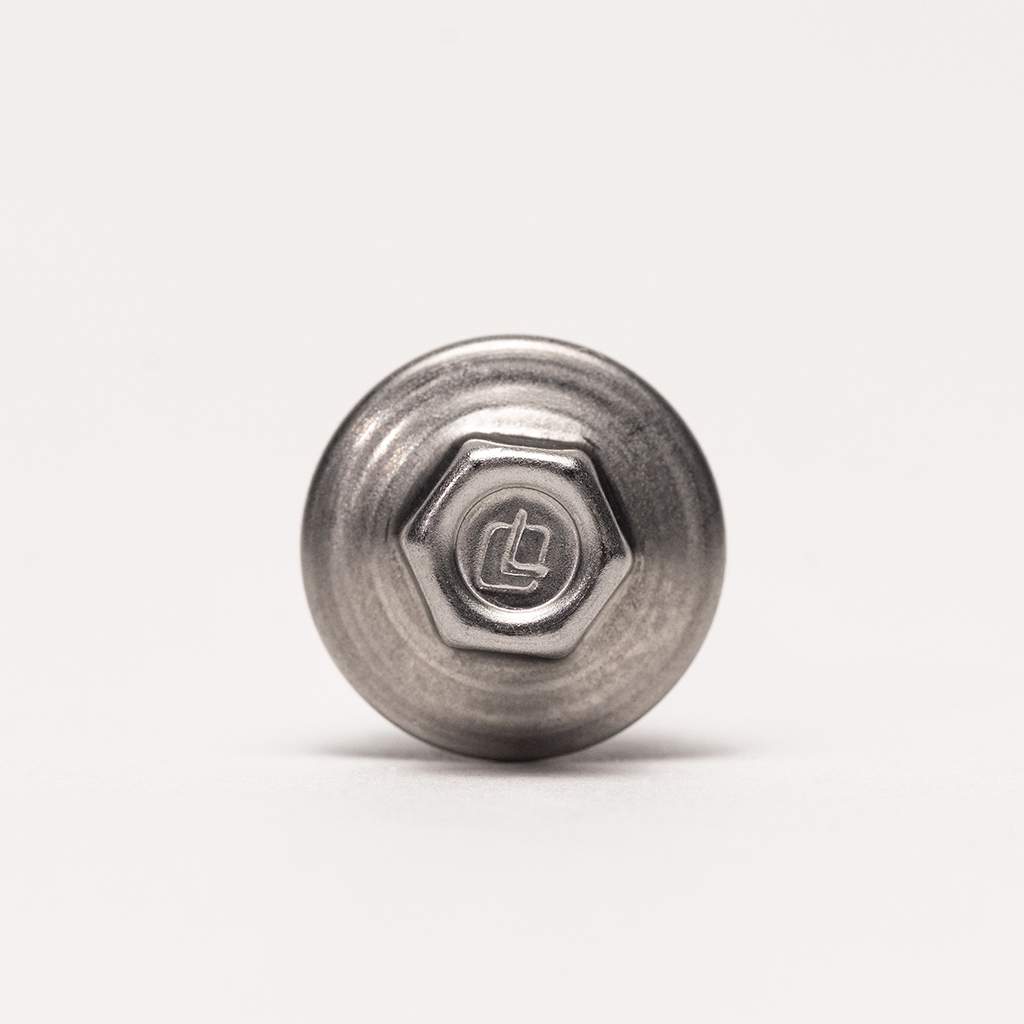

ProCap features #10 Hi-Lo threads in the popular 1/4″ drive size. The 304 stainless steel cap withstands tough weather elements and is economical in pricing. Levi’s guarantees their rust-free stainless steel cap ProCap line, available in 40 plus quick ship colors, and backed with our 40 year warranty.
- 304 Stainless steel cap with a zinc plated carbon steel shank
- EPDM washer
- Stainless steel cap
- Fastens metal to wood

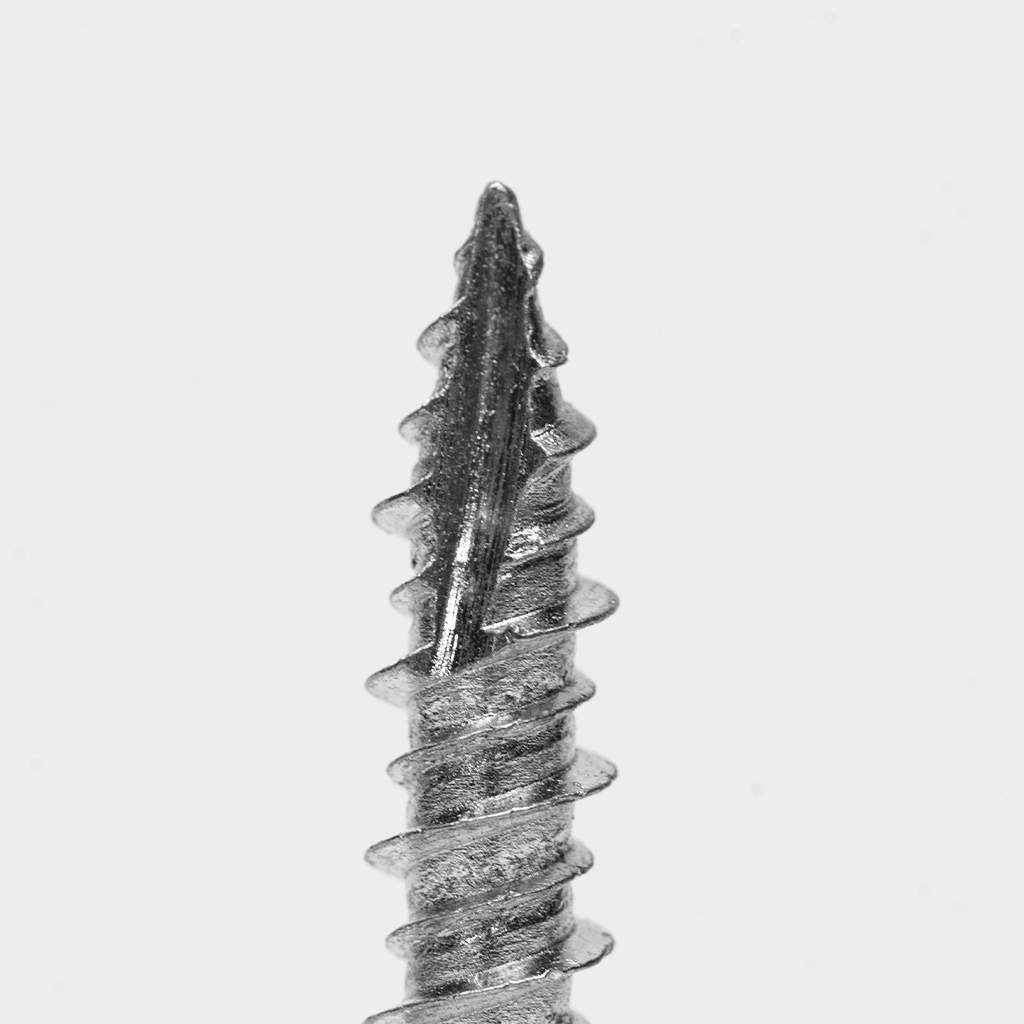

- Hi-Lo threads
| PART # | DESCRIPTION | HEAD STYLE | DRILL PT | PCS/BOX | LBS/BOX |
|---|---|---|---|---|---|
|
101PC |
#10 x 1″ |
1/4″ Hex |
Sharp Point |
3,000 |
28.1 |
|
10112PC |
#10 x 1 – 1/2″ |
1/4″ Hex |
T-17 |
2,500 |
27.9
|
|
102PC |
#10 x 2″ |
1/4″ Hex |
T-17 |
2,000 |
27.5
|
|
10212PC |
#10 x 2 – 1/2″ |
1/4″ Hex |
T-17 |
1,500 |
26.1
|
|
103PC |
#10 x 3″ |
1/4″ Hex |
T-17 |
1,000 |
19.7
|
| SUBSTRATE | PENETRATION | PULL-OUT STRENGTH |
|---|---|---|
|
3/4″ Ply |
Full |
468
|
|
1/2″ Ply |
Full |
346
|
|
7/16″ OSB |
Full |
221
|
|
2 x Yellow Pine |
1″ |
627
|
|
2 x Spruce Pine Fir |
1″ |
607
|
|
2 x Spruce Pine Fir |
1 – 1/2″ |
810
|
| SHEAR | TENSILE | TORSIONAL |
|---|---|---|
|
1,890 |
2,611 |
82
|
| SUBSTRATE | GAUGE | THICKNESS | PULL-OVER STRENGTH |
|---|---|---|---|
|
AZ55 Galvalume |
29 |
.014
|
423
|
|
AZ55 Galvalume |
26 |
.018 |
690
|
|
AZ55 Galvalume |
24 |
.024 |
813
|

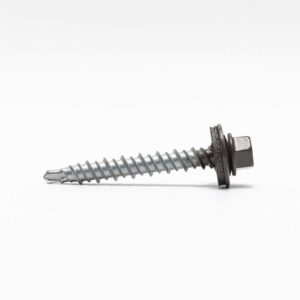

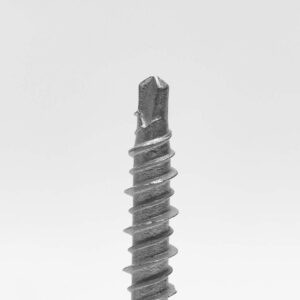

Mini Driller

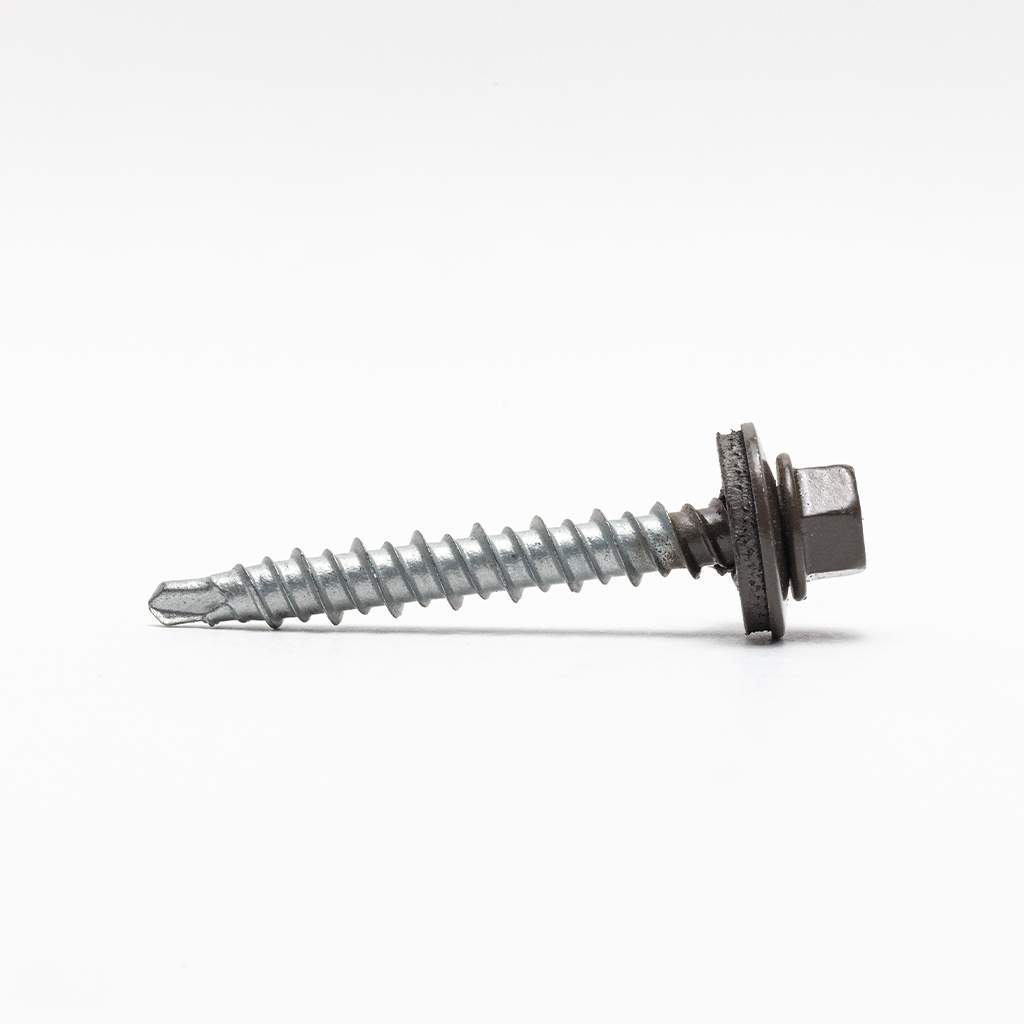

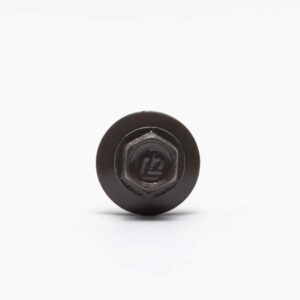

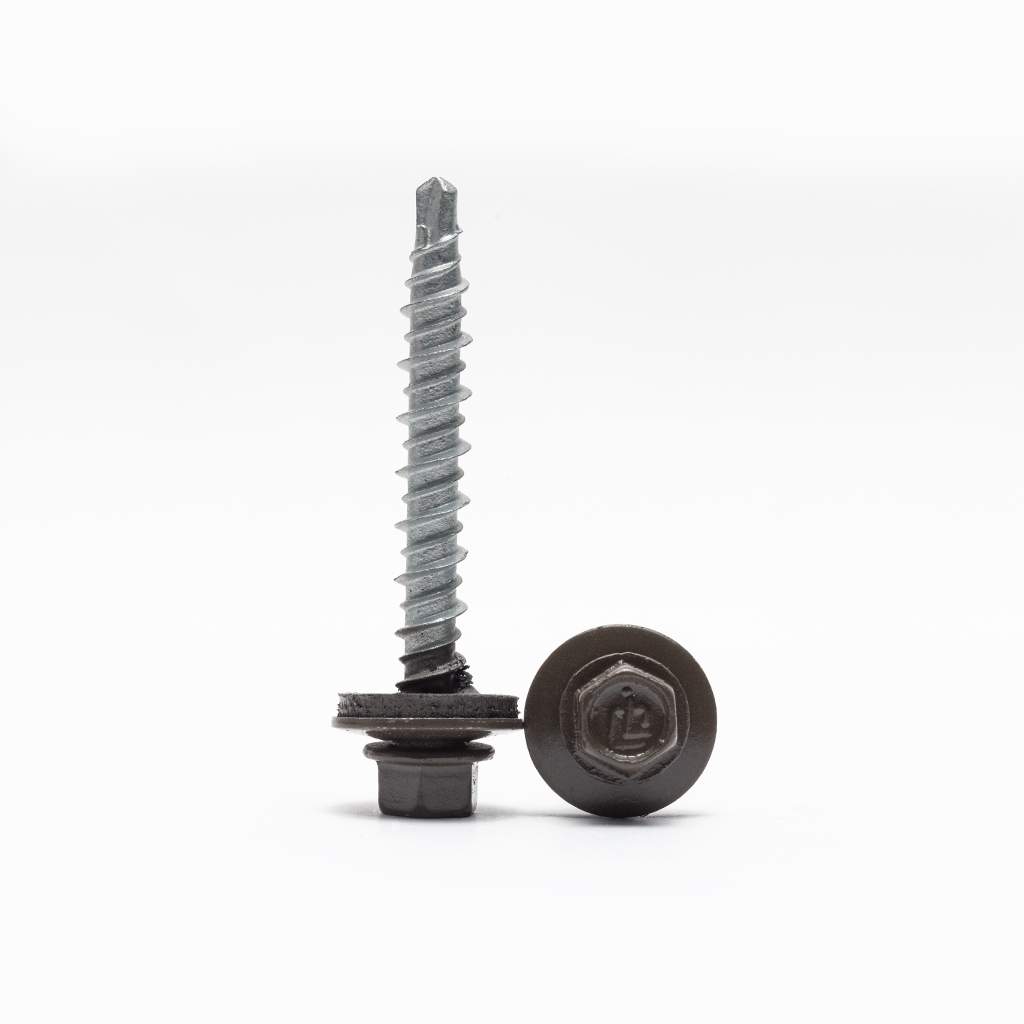

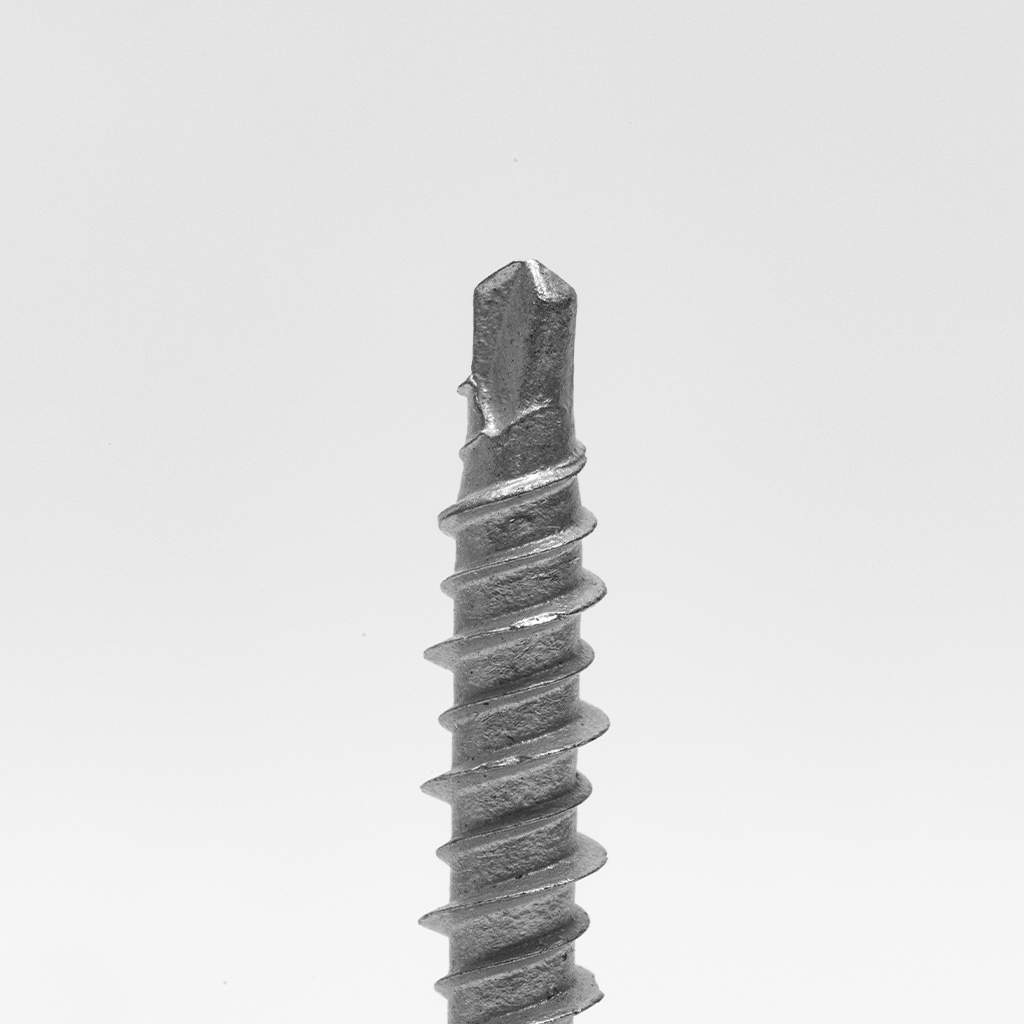

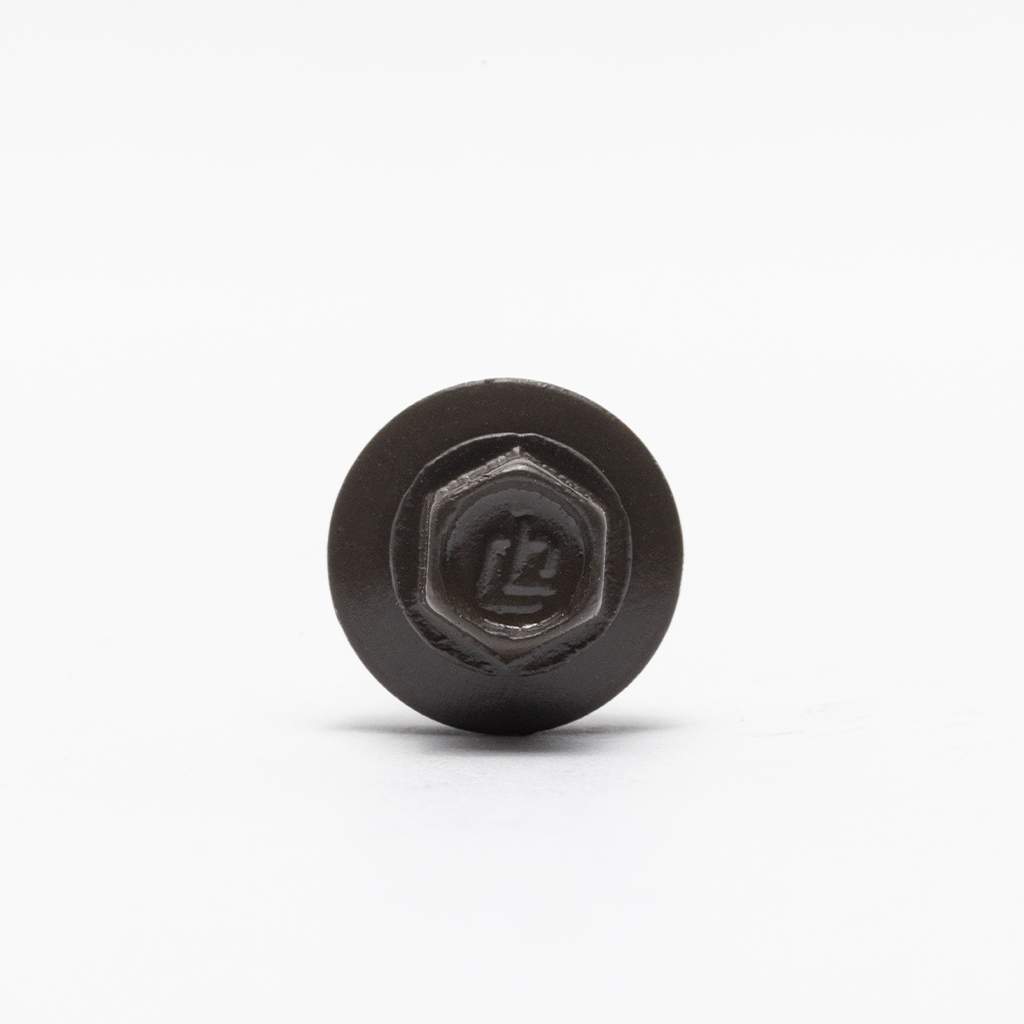

Meet the latest addition to the ProCap™ family. The ProCap™ #10 Hi-Lo MINI-DRILLER™ has all of the specs that make the ProCap™ #10 Hi-Lo the go-to fastener, but with the added MINI-DRILLER™ point. The MINI-DRILLER™ makes easy work of driving through metal panels, while the Hi-Lo thread provides superior pull-out strength in metal to wood applications.
- 304 Stainless steel cap with a zinc-plated carbon steel shank
- EPDM washer
- Stainless steel cap
- Fastens metal to wood
- Hi-Lo threads
- MINI-DRILLER™
| PART # | DESCRIPTION | HEAD STYLE | DRILL PT | PCS/BOX | LBS/BOX |
|---|---|---|---|---|---|
|
101PCMD |
#10 x 1″ |
1/4″ Hex |
Reduced Point |
3,000 |
27.6
|
|
10112PCMD |
#10 x 1-1/2″ |
1/4″ Hex |
Reduced Point |
2,500 |
28.3
|
|
102PCMD |
#10 x 2″ |
1/4″ Hex |
Reduced Point |
2,000 |
27.0
|
