Ensure a Weather Tight Seal with Fasteners

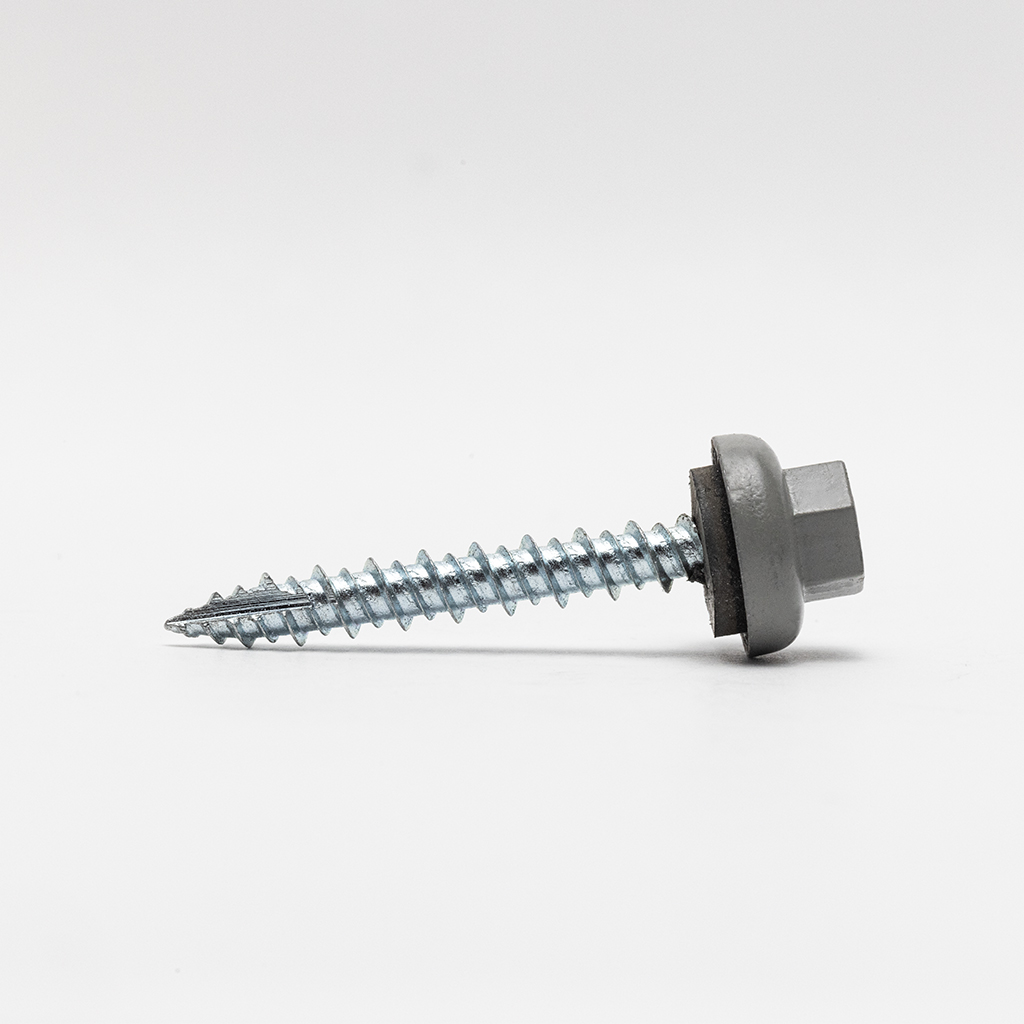

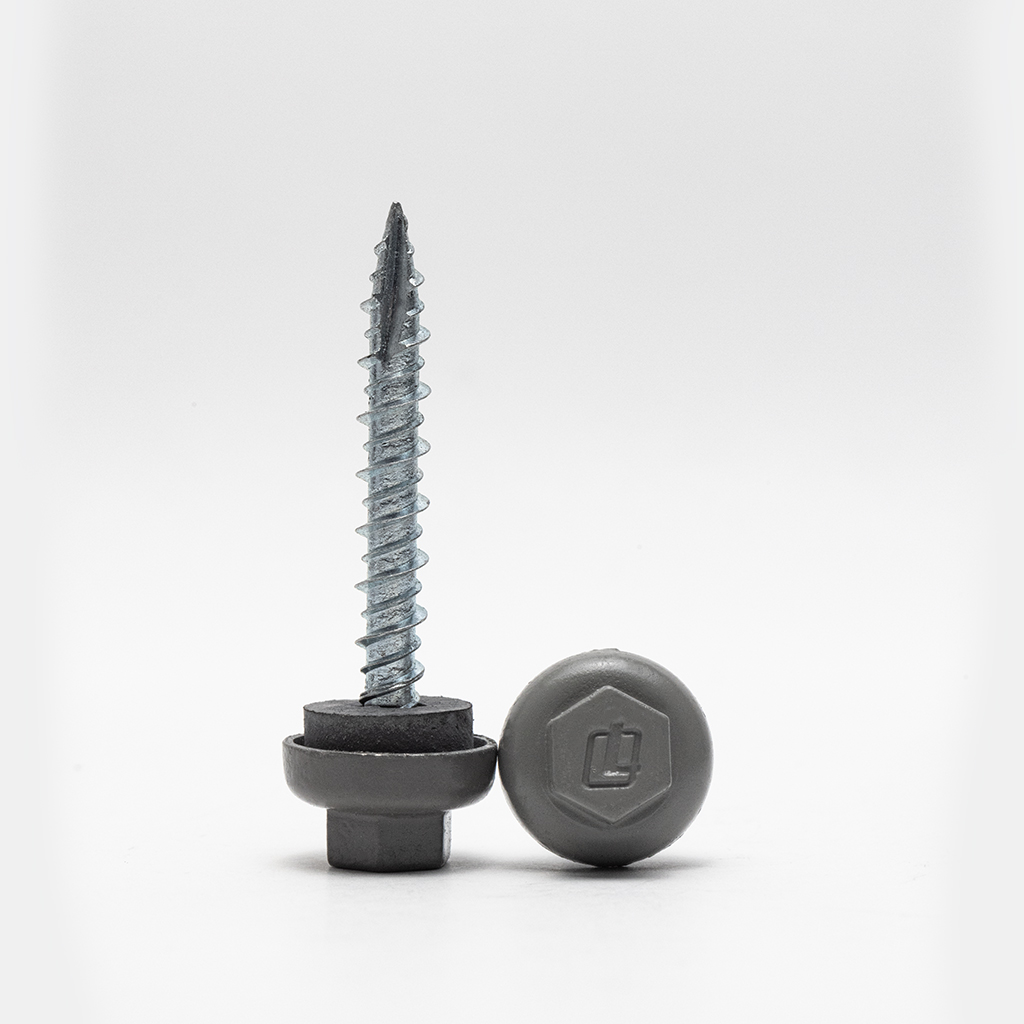

#10 HI-LO

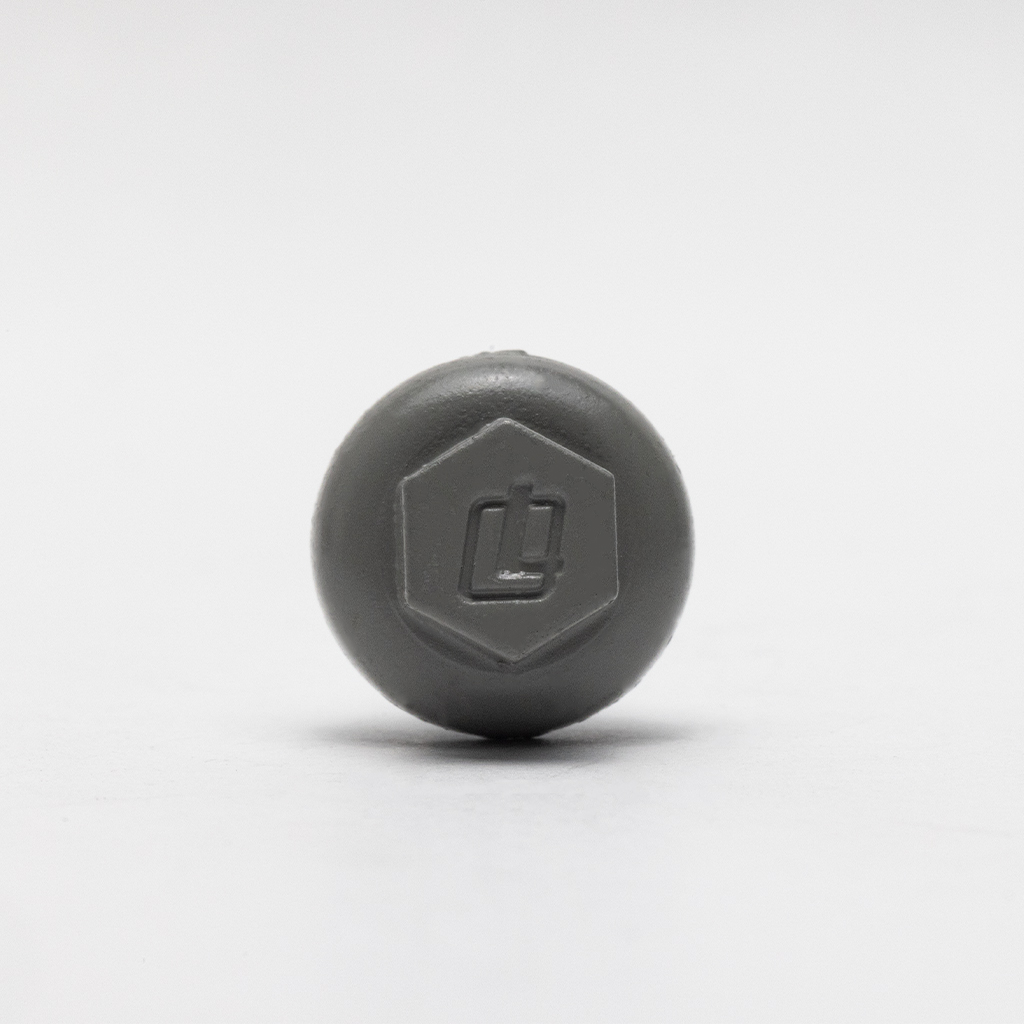

Ensuring a weather tight seal for metal to wood with the ProZ is easy. ProZ features a strong cap that withstands the toughest installation conditions and is compatible with all metal finishes. The design of the washer head reduces overdriving and the zinc aluminum alloy cap will never red rust. The quality of the ProZ line, available in 40 plus quick ship color choices, is backed by Levi’s 50 year warranty.
- No Red Rust – Zinc Aluminum Alloy Cap
- 50-Year Warranty

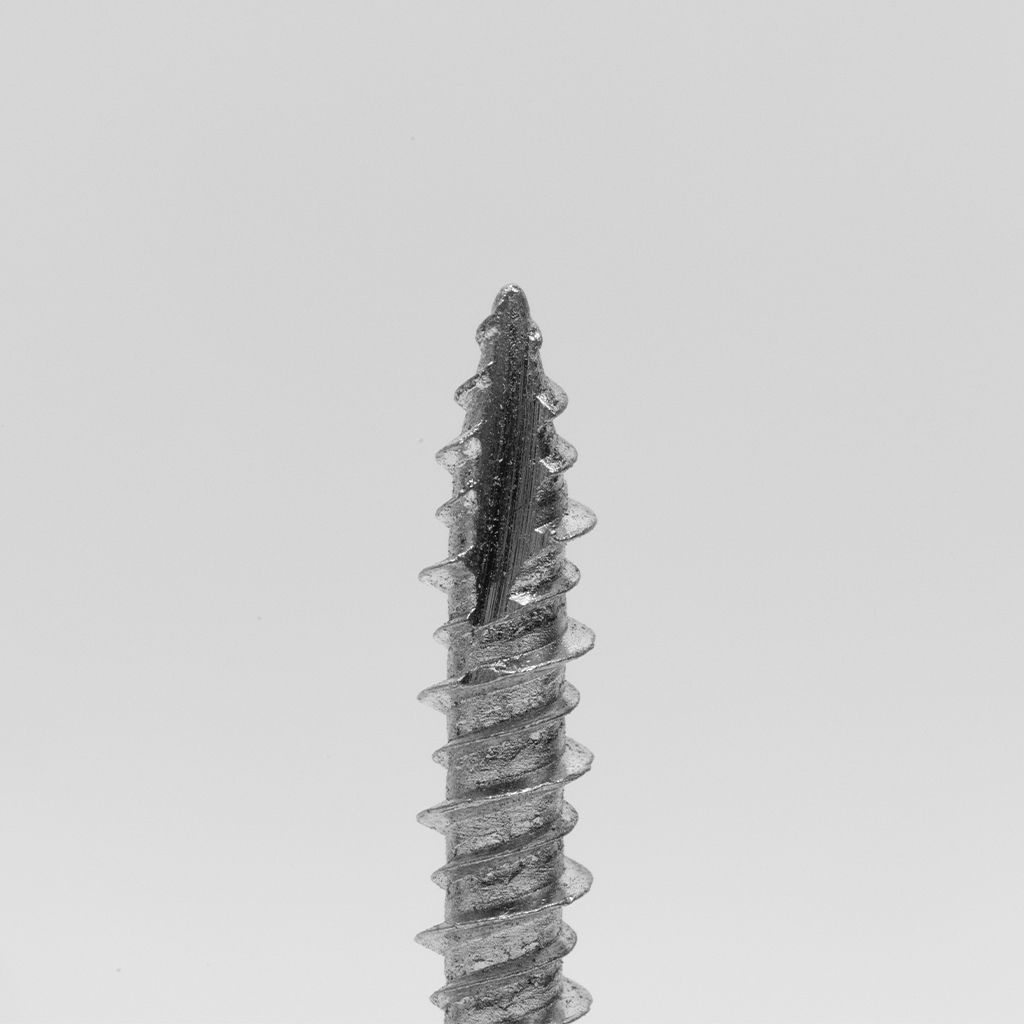

- Hi-Lo Threads
- Long-Lasting EPDM Washer
- Fastens Metal to Wood
| PART # | DESCRIPTION | HEAD STYLE | DRILL PT | PCS/BOX | LBS/BOX |
|---|---|---|---|---|---|
|
1234PZ |
#12 – 14 x 3/4″ Stitch |
5/16″ Hex |
Sharp Point |
2,500 |
34.2 |
|
101PZ |
#10 x 1″ |
5/16″ Hex |
T-17 |
2,500 |
34.12
|
|
10112PZ |
#10 x 1 -1/2″ |
5/16″ Hex |
T-17 |
2,000 |
31.56
|
|
102PZ |
#10 x 2″ |
5/16″ Hex |
T-17 |
1,500 |
27.32
|
|
10212PZ |
#10 x 2 – 1/2″ |
5/16″ Hex |
1,000 |
T-17 |
20.83 |
|
103PZ |
#10 x 3″ |
5/16″ Hex |
T-17 |
500 |
11.60
|
| SUBSTRATE | PENETRATION | PULL-OUT STRENGTH |
|---|---|---|
|
3/4″ Ply |
Full |
468 |
|
1/2″ Ply |
Full |
345 |
|
7/16″ OSB |
Full |
197 |
|
2 x Yellow Pine |
1″ |
657 |
|
2 x Spruce Pine Fir |
1″ |
682 |
|
2 x Spruce Pine Fir |
1 – 1/2″ |
736 |
| SHEAR | TENSILE | TORSIONAL |
|---|---|---|
|
1,860 |
2,446 |
89 |
| SUBSTRATE | GAUGE | THICKNESS | PULL-OVER STRENGTH |
|---|---|---|---|
|
AZ55 Galvalume |
29 |
.014
|
635
|
|
AZ55 Galvalume |
26 |
.018 |
828 |
|
AZ55 Galvalume |
24 |
.024 |
997
|

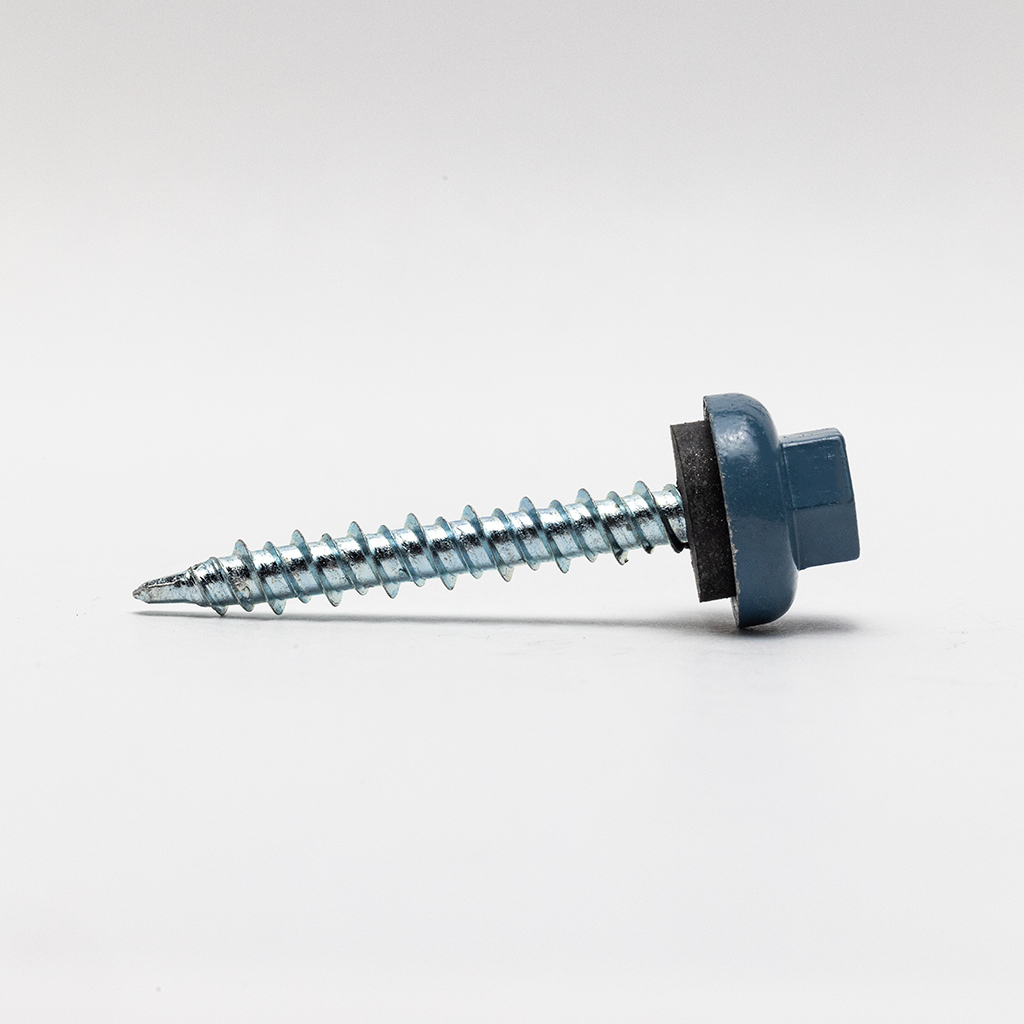

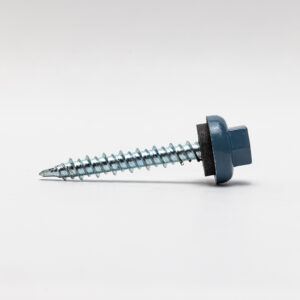

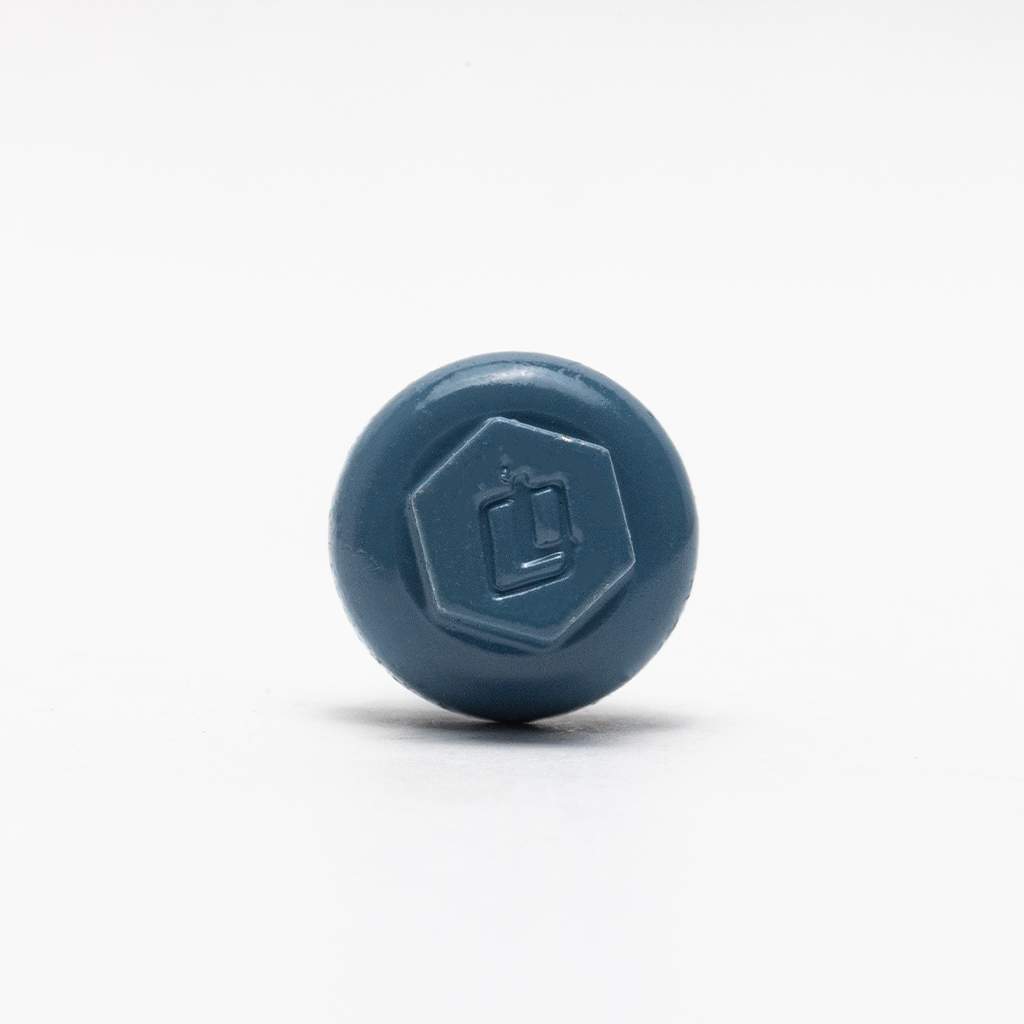

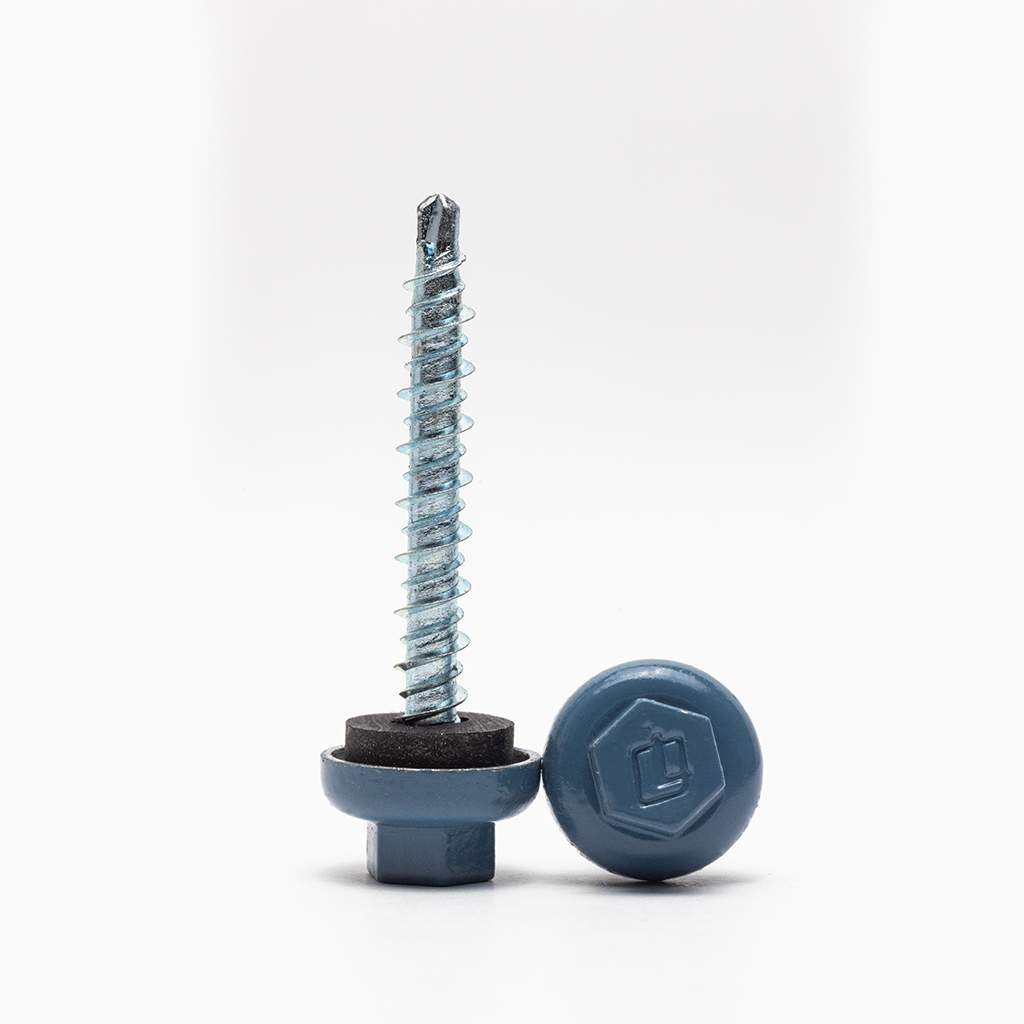

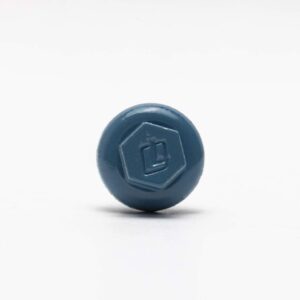

MINI-DRILLER

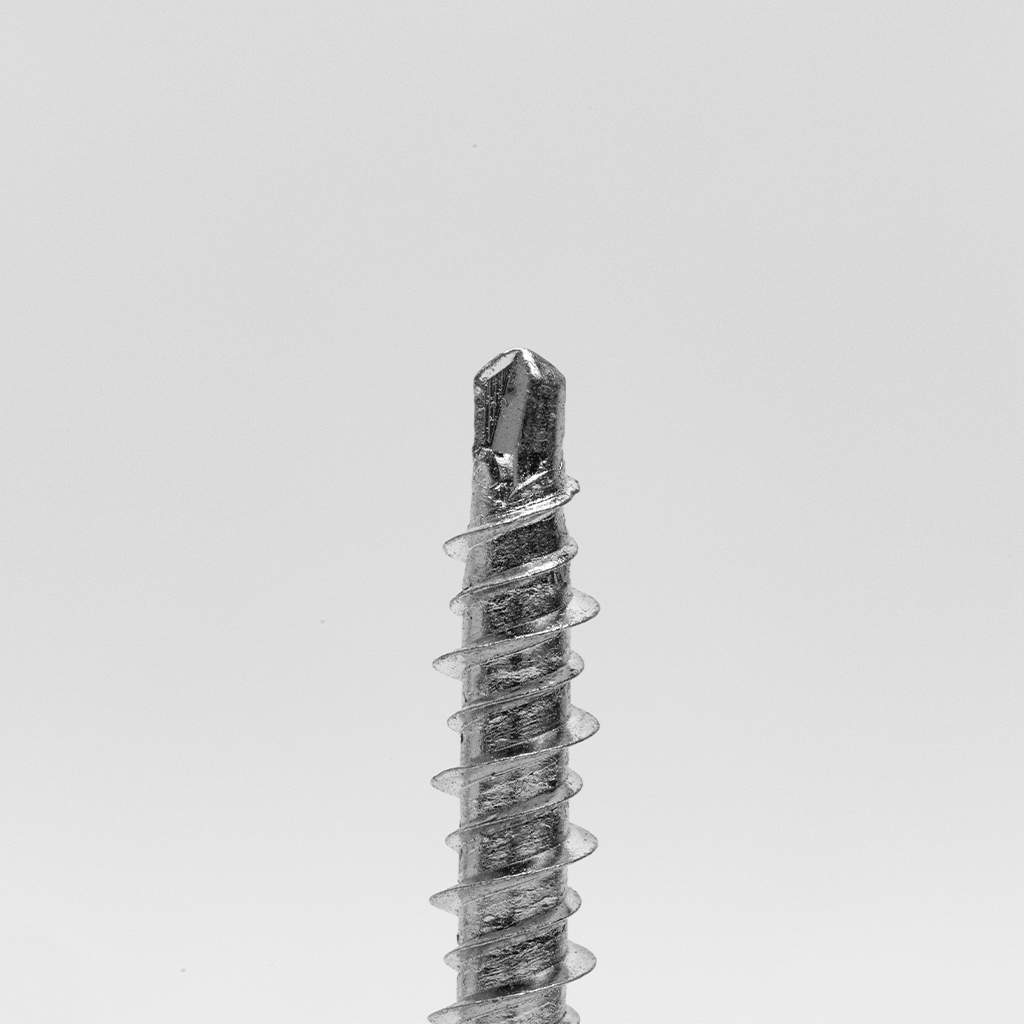

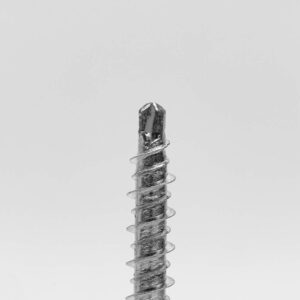

Meet the latest addition to the ProZ™ family. The Proz™ #10 Hi-Lo MINI-DRILLER™ has all of the specs that make the ProZ™ #10 Hi-Lo the go-to fastener, but with the added MINI-DRILLER™ point. The MINI-DRILLER™ makes easy work of driving through metal panels, while the Hi-Lo thread provides superior pull-out strength in metal to wood applications.
- No Red Rust – Zinc Aluminum Alloy Cap
- Faster Start Time
- Increased Performance when Driving Through Two Layers of Metal
- Reduces Trapped Steel Shavings
- Zinc Plated
- Hi-Lo Threads
| PART # | DESCRIPTION | HEAD STYLE | DRILL PT | PCS/BOX | LBS/BOX |
|---|---|---|---|---|---|
|
101PZMD |
#10 x 1″ |
5/16″ Hex |
Reduced Point |
2,500 |
33.0
|
|
10112PZMD |
#10 x 1 – 1/2″ |
5/16″ Hex |
Reduced Point |
2,000 |
31.5
|
|
102PZMD |
#10 x 2″ |
5/16″ Hex |
Reduced Point |
1,500 |
27.1 |
|
10212PZMD |
#10 X 2 – 1/2″ |
5/16″ Hex |
Reduced Point |
1,000 |
20.8
|
|
103PZMD |
#10 X 3″ |
5/16″ Hex |
Reduced Point |
500 |
12.1
|
| SUBSTRATE | PENETRATION | PULL-OUT STRENGTH |
|---|---|---|
|
3/4″ Ply |
Full |
441 |
|
1/2″ Ply |
Full |
377
|
|
7/16″ OSB |
Full |
232 |
|
2 x Yellow Pine |
1″ |
837
|
|
2 x Spruce Pine Fir |
1″ |
386 |
|
2 x Spruce Pine Fir |
1 – 1/2″ |
782
|
| SHEAR | TENSILE | TORSIONAL |
|---|---|---|
|
1,770 |
2,580 |
84 |
| SUBSTRATE | GAUGE | THICKNESS | PULL-OVER STRENGTH |
|---|---|---|---|
|
AZ55 Galvalume |
29 |
.014
|
875
|
|
AZ55 Galvalume |
26 |
.018 |
765
|
|
AZ55 Galvalume |
24 |
.024 |
1,120 |
#14

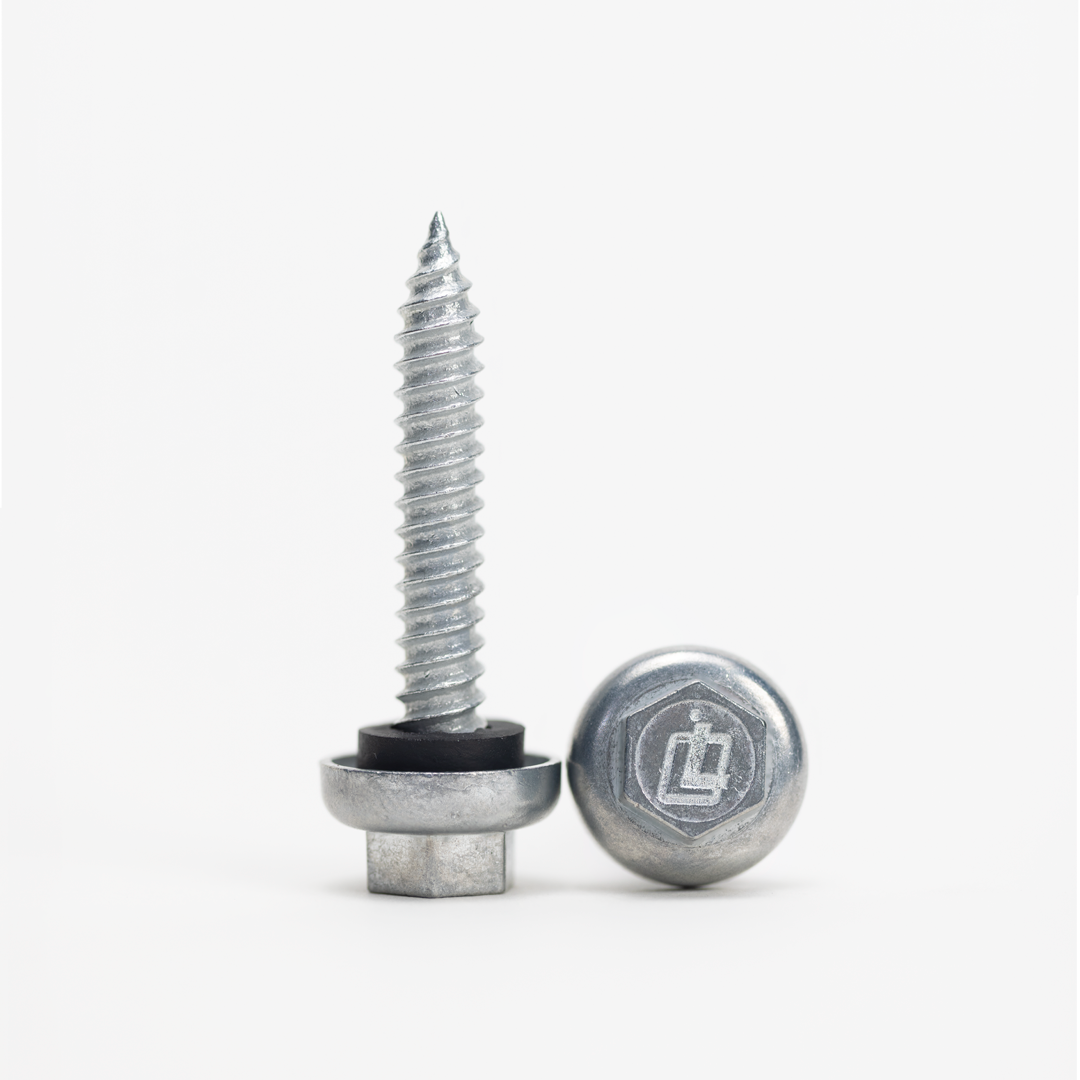

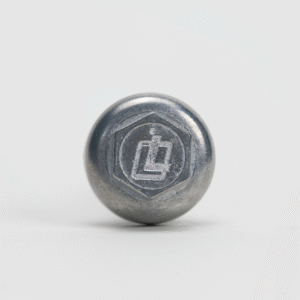

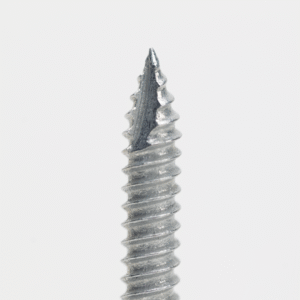

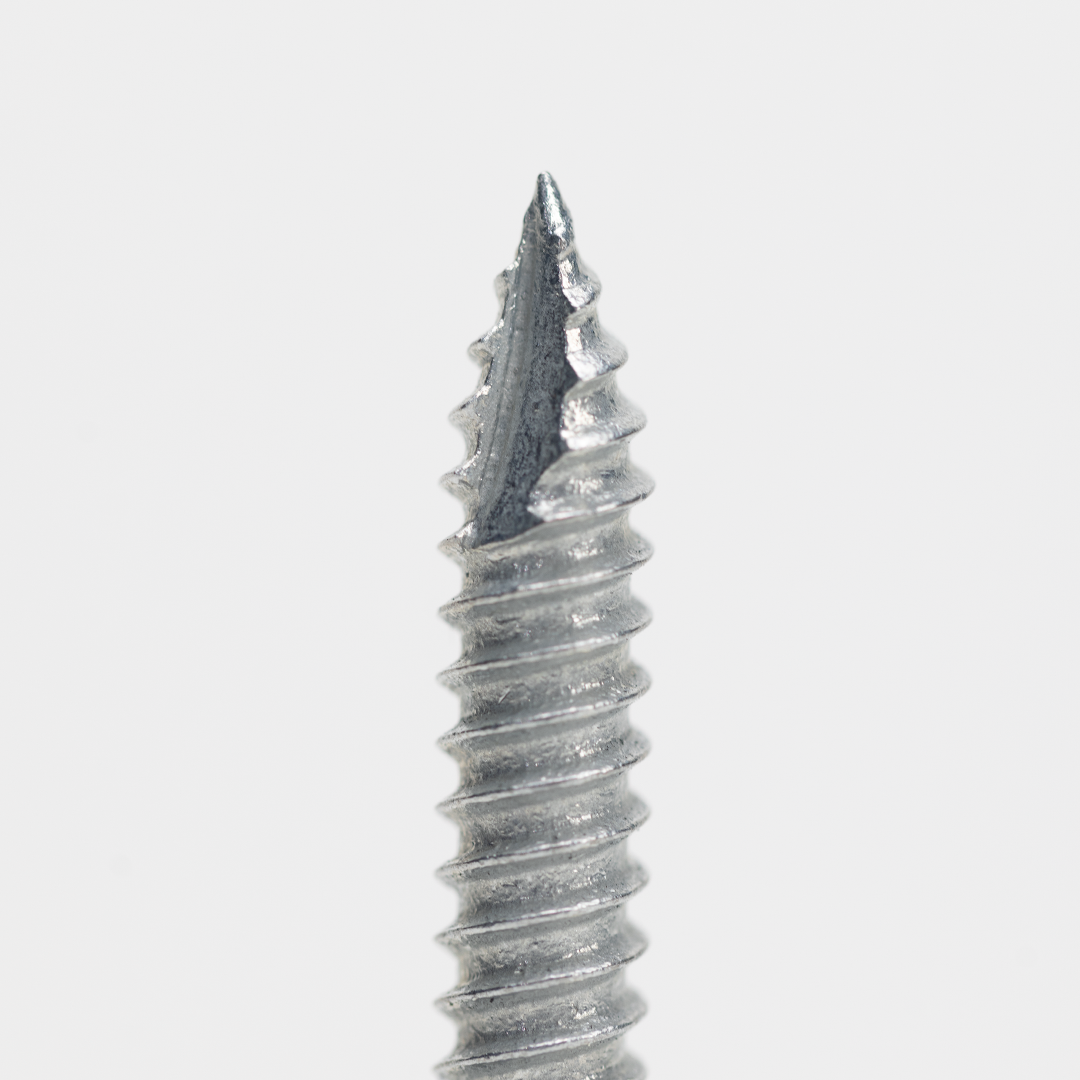

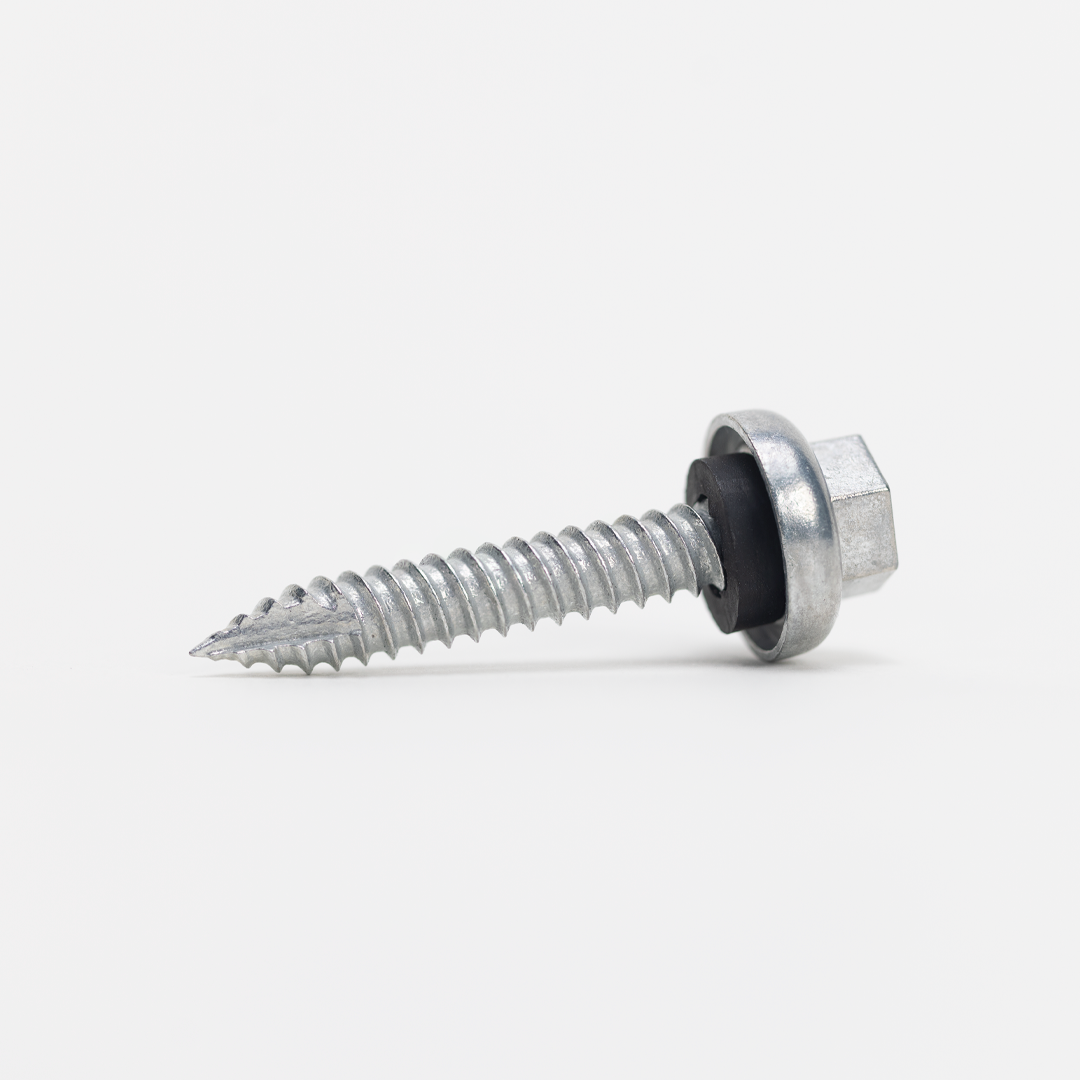

The ProZ #14 ensures a weather-tight seal for metal-to-metal and metal-to-wood applications. Designed with a strong cap, it withstands the toughest installation conditions and is compatible with all metal finishes. The washer head helps prevent overdriving, while the zinc-aluminum alloy cap ensures it will never red rust. As a #14 fastener, it’s an excellent solution for strip-out repairs and replacing loosened screws.
- 3/8″ Hex Head
- 50-Year Warranty
- EPDM Rubber Washer
- Zinc Aluminum Alloy Cap
- #14 Shank
- Replacement Screw
- Fastens Metal to Wood or Metal to Metal
| PART # | DESCRIPTION | HEAD STYLE | DRILL PT | PCS/BOX | LBS/BOX |
|---|---|---|---|---|---|
|
14112PZ |
#14 x 1 – 1/2″ |
3/8″ Hex |
T-17 |
1,500 |
39.05 |
|
142PZ |
#14 x 2″ |
3/8″ Hex |
T-17 |
1,250 |
38.35
|
|
14212PZ |
#14 x 2 – 1/2″ |
3/8″ Hex |
T-17 |
1,000 |
35.85
|
