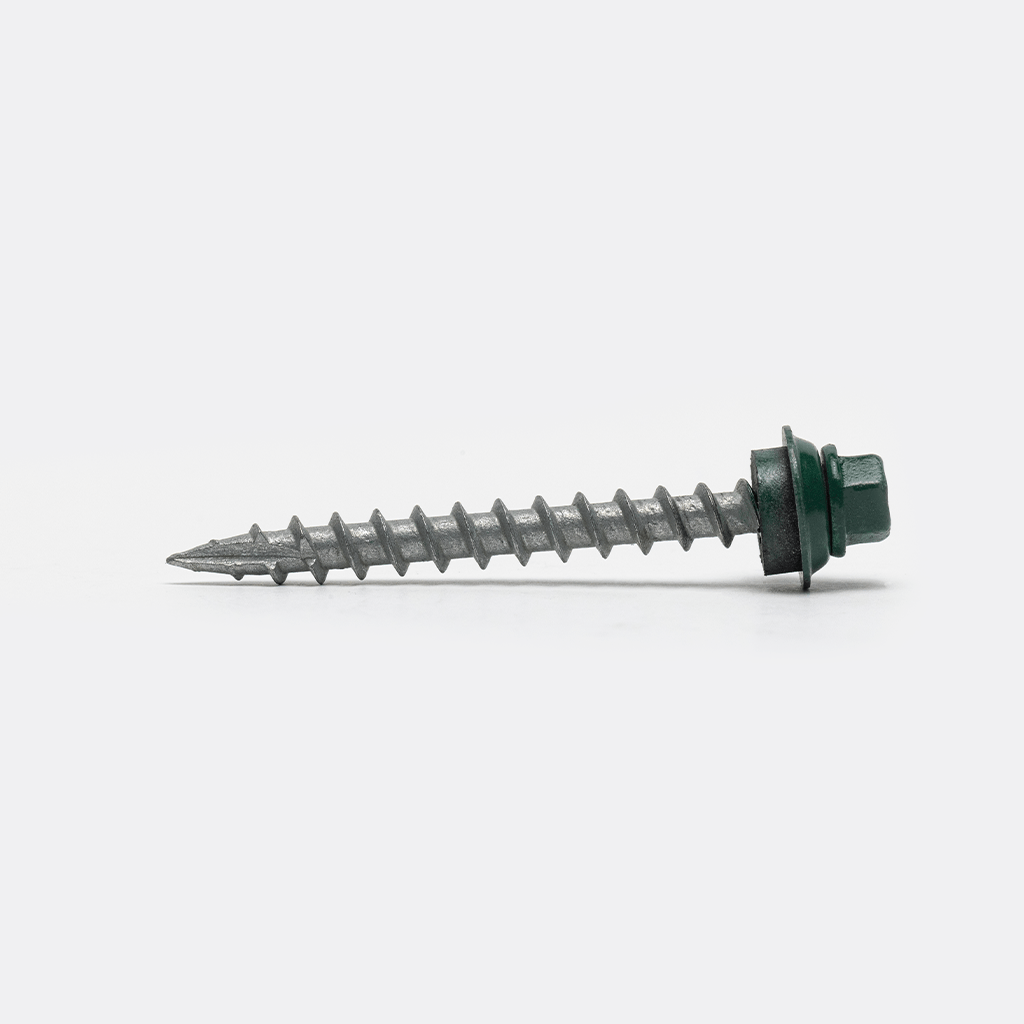

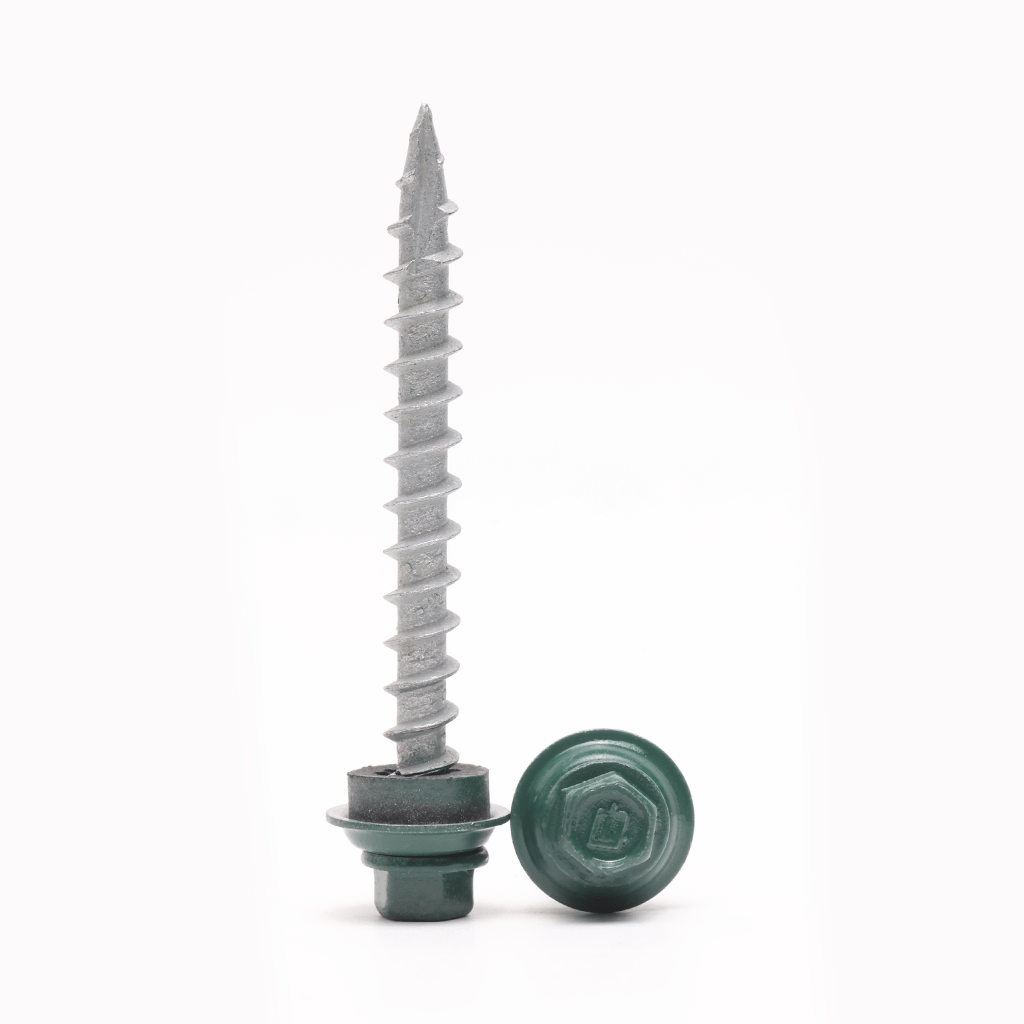

Metal to OSB Fastener
#12 is the right screw to get a good grip in metal to OSB applications. The #12 shank and aggressive threads means greater pull-out strength. The non-bonded complete cover washer perfectly seals out the elements, preserving the washer integrity.
- Best for metal to OSB
- #12 Deep thread shank

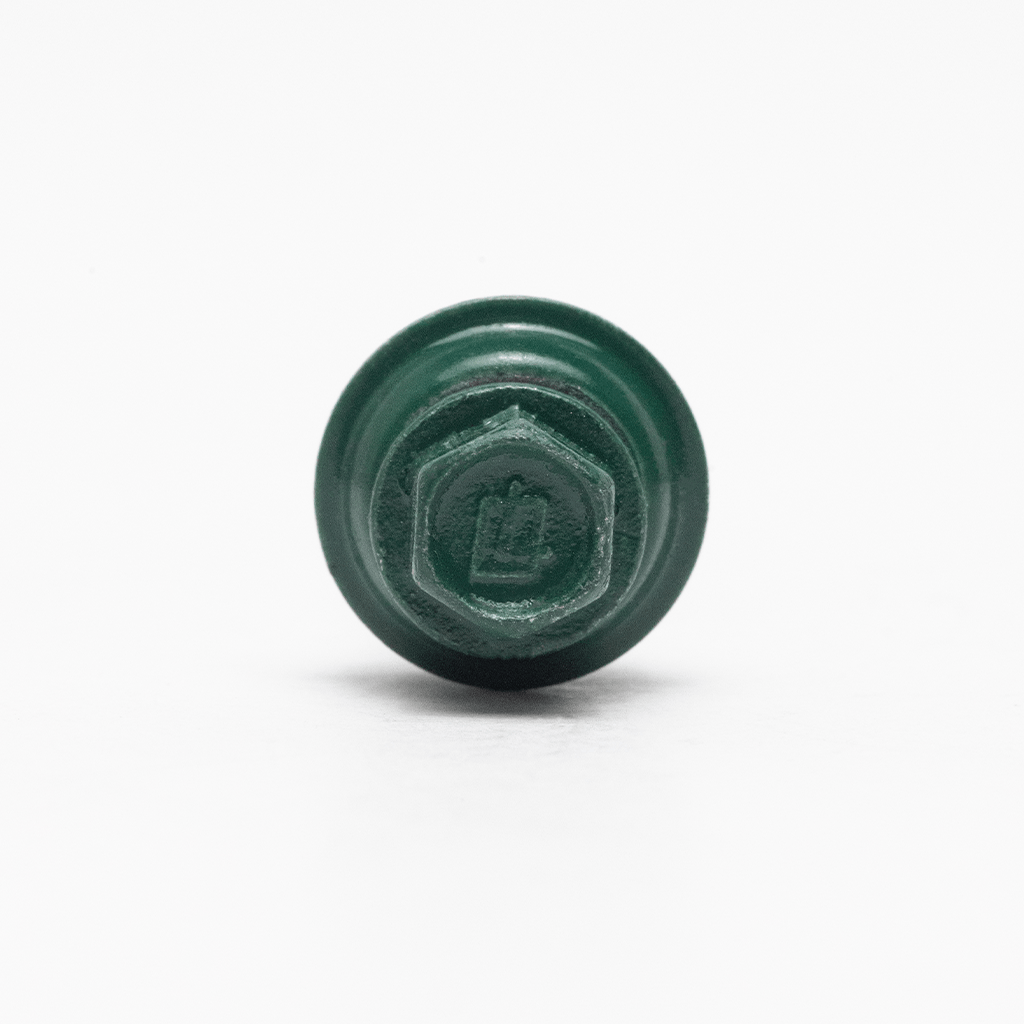

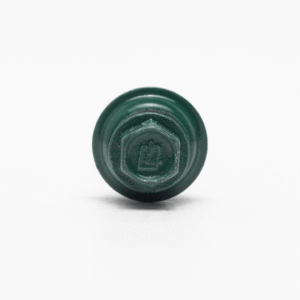

- Complete cover washer
- Mechanical galvanized
| PART # | DESCRIPTION | HEAD STYLE | DRILL PT | PCS/BOX | LBS/BOX |
|---|---|---|---|---|---|
|
1234TG |
#12 x 3/4″ Stitch |
1/4″ Hex |

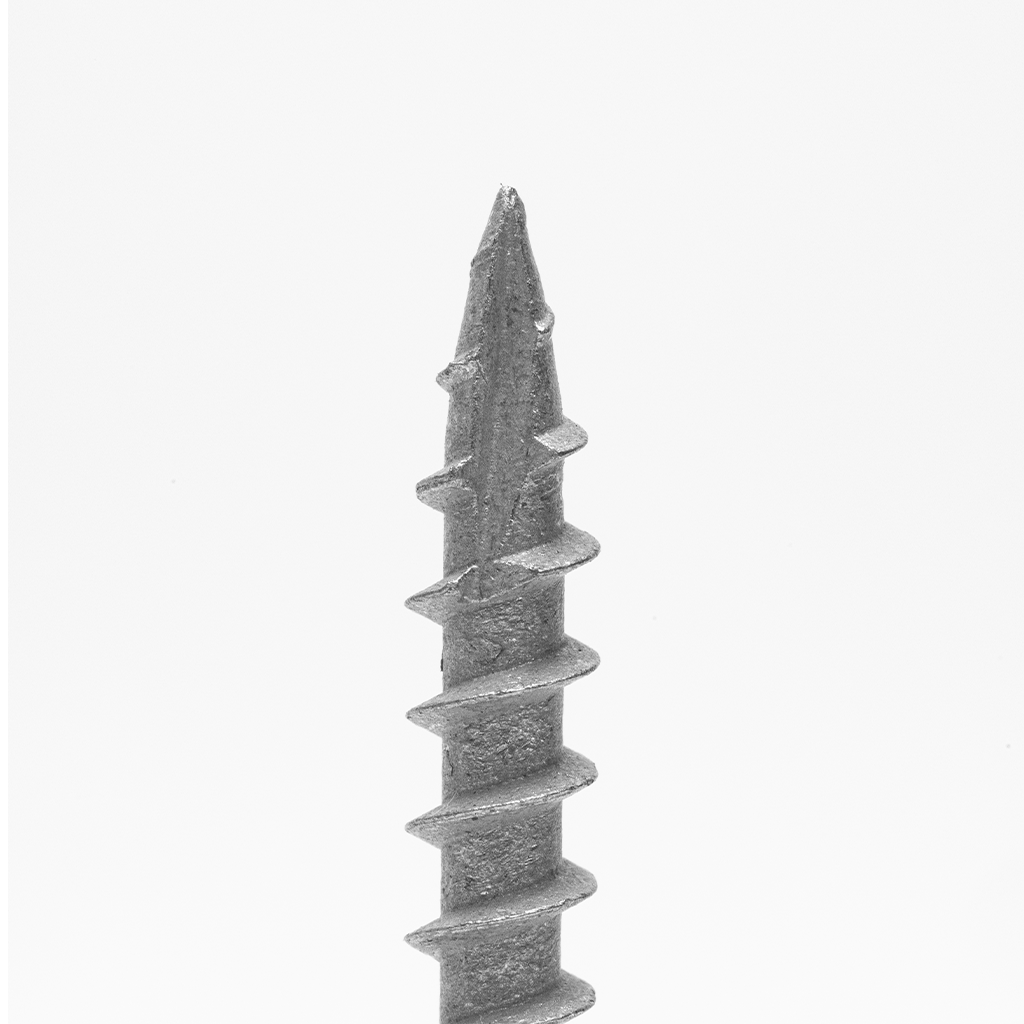

T-17 |
3,000 |
23.4
|
|
121TG |
#12 x 1″ |
1/4″ Hex |
T-17 |
3,000 |
22.4
|
|
12112TG |
#12 x 1 – 1/2″ |
1/4″ Hex |
T-17 |
2,500 |
23.0
|
|
122TG |
#12 x 2″ |
1/4″ Hex |
T-17 |
2,000 |
21.3
|
|
12212TG |
#12 x 2 – 1/2″ |
1/4″ Hex |
T-17 |
1,000 |
16.8
|
| SUBSTRATE | PENETRATION | PULL-OUT STRENGTH |
|---|---|---|
|
3/4″ Ply |
Full |
429
|
|
1/2″ Ply |
Full |
426
|
|
7/16″ OSB |
Full |
265
|
|
2 x Yellow Pine |
1″ |
885
|
|
2 x Spruce Pine Fir |
1″ |
441
|
|
2 x Spruce Pine Fir |
1 – 1/2″ |
769
|
| SHEAR | TENSILE | TORSIONAL |
|---|---|---|
|
1,780 |
2,630 |
88
|
| SUBSTRATE | GAUGE | THICKNESS | PULL-OVER STRENGTH |
|---|---|---|---|
|
AZ55 Galvalume |
29 |
.014
|
516
|
|
AZ55 Galvalume |
26 |
.018 |
671
|
|
AZ55 Galvalume |
24 |
.024 |
870
|

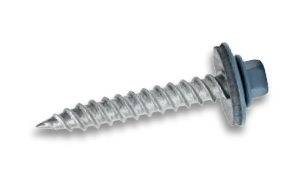

ALSO AVAILABLE
